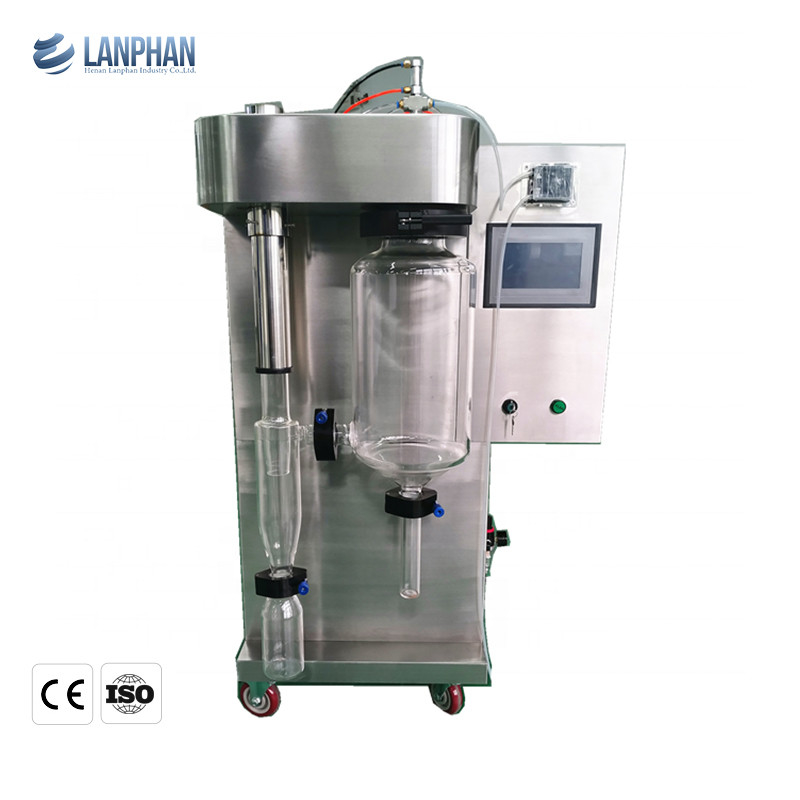

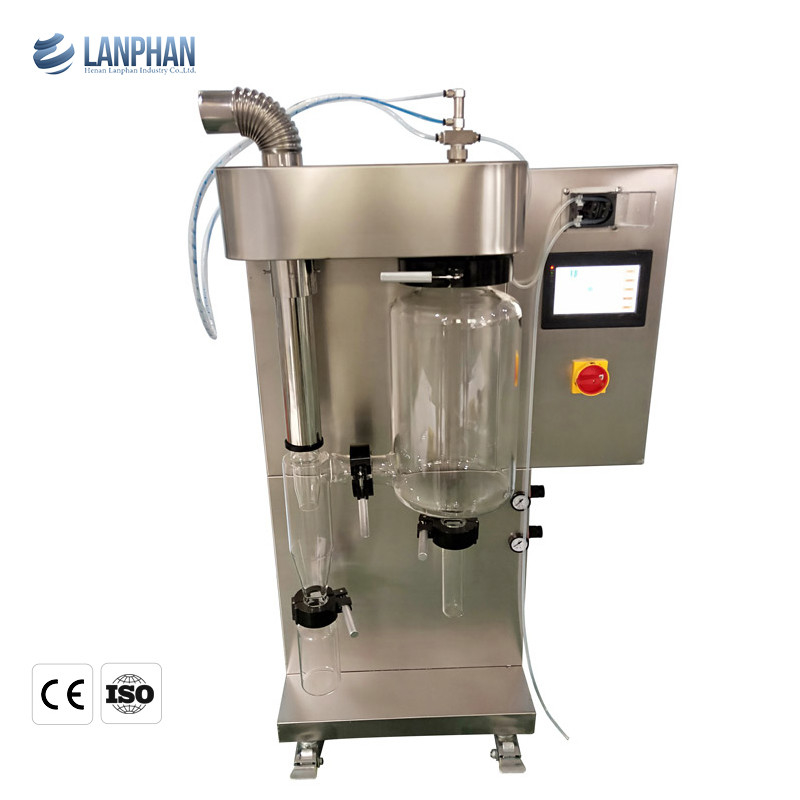

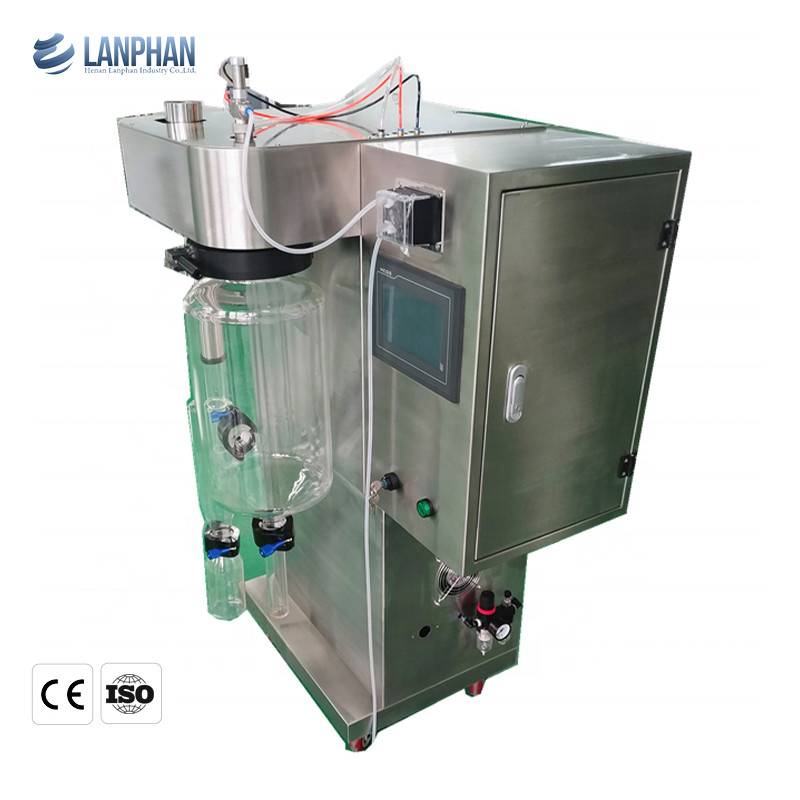

Lab Vacuum Spray Drying 2L Mini Extract Centrifugal Spray Dryer
Product Description
Spray dryer is a drying equipment for dealing with solution, suspension or slurry material. It is used to spray the material into droplets dispersed in hot air. The material and the hot air are parallel flow, countercurrent or mixed flow of the way to contact each other, so that the moisture evaporates quickly to achieve the purpose of drying. This drying method can eliminate the concentration, filtration, grinding and other operations, and can obtain 30~500μm granular product. The drying time is very short, generally 5~30s. Suitable for drying of high heat sensitive materials and easily dispersed materials in the process of liquid concentration.
Experimental spray dryer, compact design, self-contained, no other facilities can be run. One-click startup, color large LCD touch screen operation. Fully automatic or manual monitoring two modes of operation. It is the smallest volume, the least noise, drying effect is very excellent a spray dryer.
Product Parameter
| Air inlet temperature control | 30～300℃ |
| Air outlet temperature control | 30～150℃ |
| Electric heater power | 3KW AC220V |
| evaporation | 2000mL/H |
| Maximum feeding capacity | 2000mL/H |
| Fan power | 0.55KW |
| Maximum air volume | 5.6m³/min |
| Maximum air Pressure | 1020Pa |
| Air compressor power | 0.2KW |
| Nozzle diameter | 1.00mm |
| Operating Temperature | 10～40℃ |
| Dimension | 800 x 650 x 1300 ( mm ) |
| Weight | 125KG |
