Place of Origin:
Henan
Brand Name:
Lanphan
Certification:
CE
Model Number:
ZP-9A
Video
Video
Video
Video
Tablet Press Machine Small Pill Pharmaceutical Dispensing Hydraulic Compressor

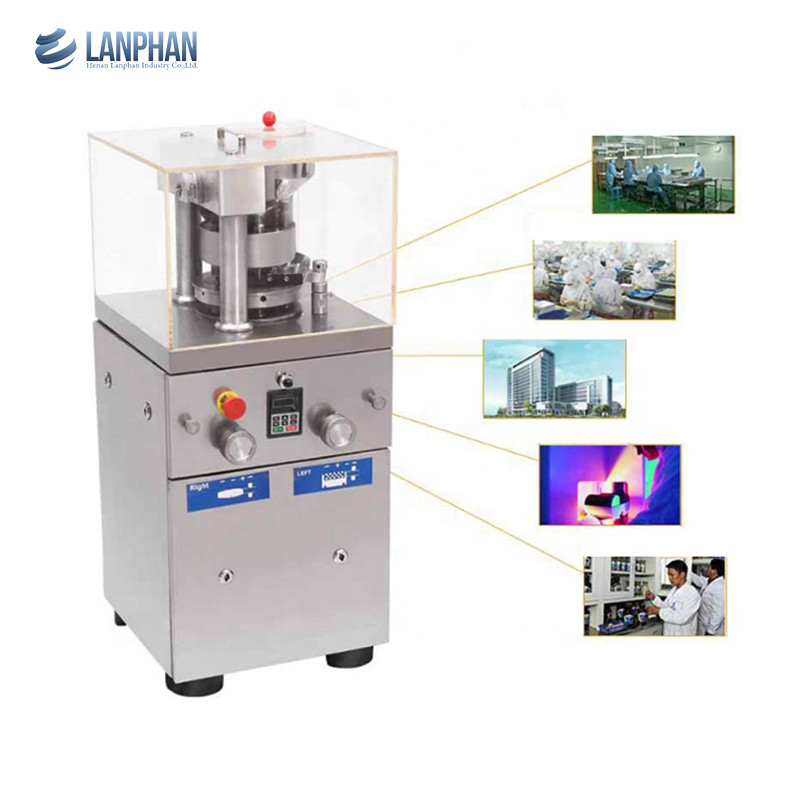

Application
1. Used in chemical, food, electronics and other industries to compress various granular raw materials into tablets;
2. Used for small batch production, pressing various shapes of tablets. Such as round tablets, special-shaped tablets, ring tablets, graphic tablets, double-sided lettering tablets and other tablets, calcium tablets, etc.;
3. It is mainly suitable for the small batch production of special medicines in various medical research institutes, laboratories of universities, pharmaceutical research and development centers, and large pharmacies;
Tablet Press Machine Details
1. This machine is a small rotary tablet press equipment. The main motor adopts frequency converter stepless speed regulation, the starting speed is low, and the production speed is continuously adjustable;
2. Imported frequency converter, with manual control of tablet weight function, main motor overload protection, main pressure overload protection function;
3. The main drive system adopts worm gear reducer, which has large output torque, high transmission efficiency, stable transmission, low noise and long service life;

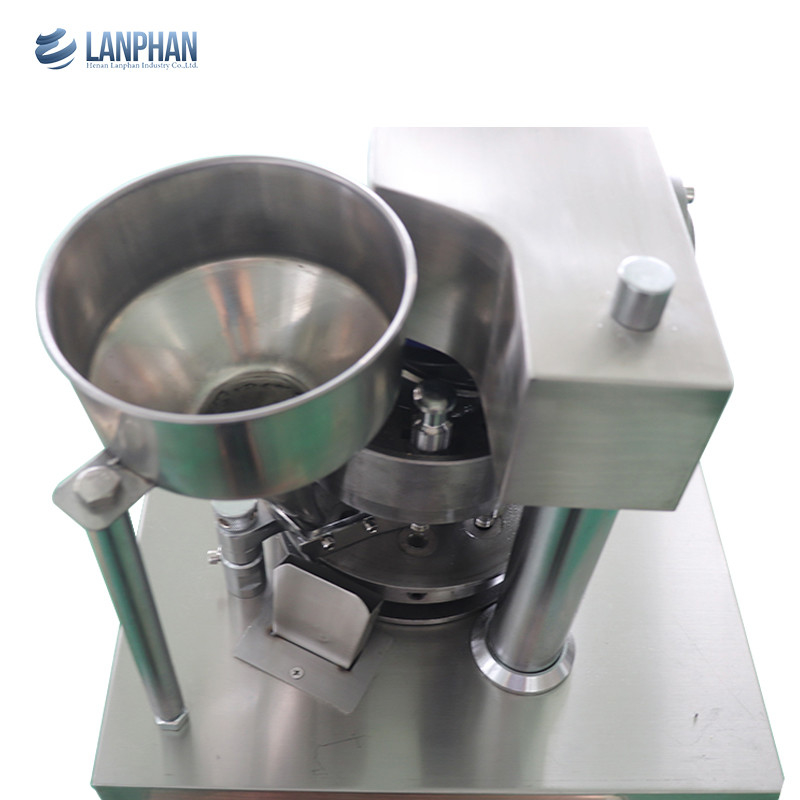

4. The tablet pressing room is completely sealed, and all parts in contact with the medicine are made of stainless steel or non-toxic polymer materials, which fully meets the requirements of GMP;
5. According to customer needs, it can realize the pressing function of ring-shaped tablet and the pressing function of spherical tablet.

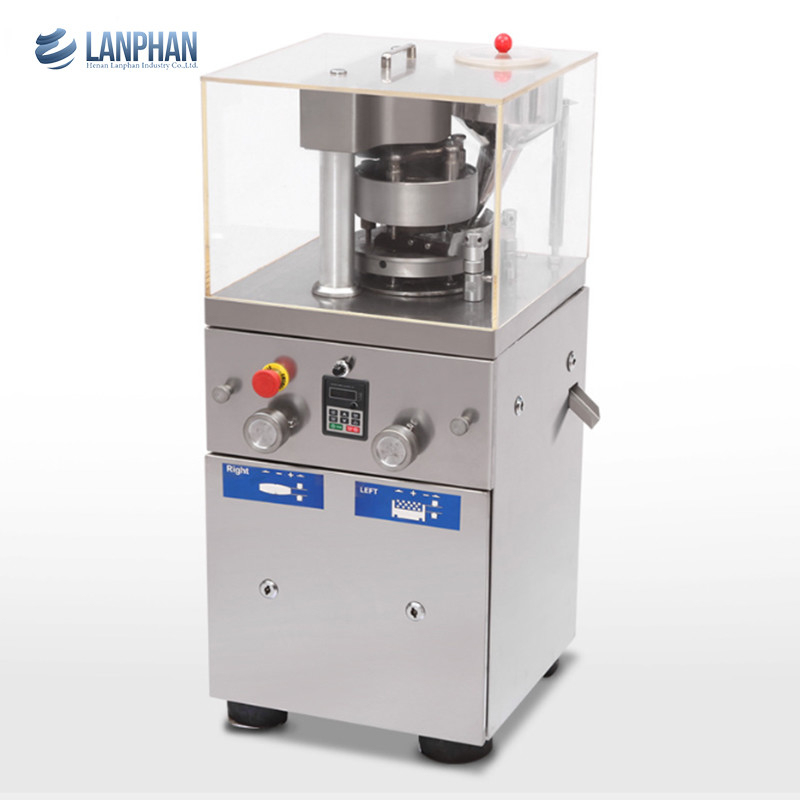

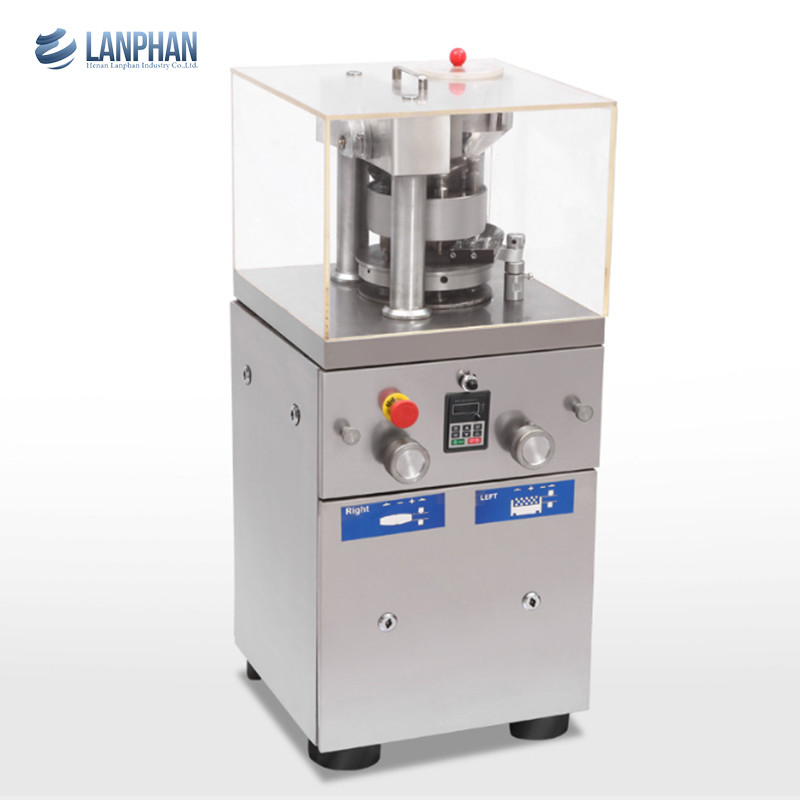

Tablet Press Machine Description
This machine is an automatic rotary continuous tablet press, which compresses granular raw materials into various tablets. It is mainly used in the production of tablets in the pharmaceutical industry, as well as in the chemical, food and electronics industries. The outer shell is a fully enclosed form, the material is stainless steel, and the inner table is stainless steel. The surface of the turntable is specially treated to keep the surface gloss, prevent cross contamination, and meet GMP requirements. The doors and windows are made of transparent glass, which can clearly observe the pressing state, and can be fully opened, which is convenient for internal cleaning and maintenance. All controllers and operating parts are reasonably arranged. The frequency conversion speed control device is used for electrical speed control, which is convenient to operate, stable in rotation, safe and accurate. All transmission devices are arranged inside the machine to keep the machine parts clean. Equipped with overload protection device, when the pressure is overloaded, it can automatically stop.
Tablet Press Machine Parameters
| Model | ZP-5 | ZP-7 | ZP-9 |
| Number of die (paid) | 5 | 7 | 9 |
| Max tablet pressure (kN) | 60 | 60 | 60 |
| Max tablet diameter (mm) | 18mm | ||
| Max filling depth (mm) | 15 | 15 | 15 |
| Maxtablet thickness (mm) | 6 | 6 | 6 |
| Turntablespeed (rev/min) | 30 | 30 | 30 |
| Production capacity (pieces/hour) | 9000 | 12600 | 16200 |
| Motor power (kw) | 2.2 | ||
| Dimensions (mm) | 960*660*1230 | ||
| Weight (kg) | 308 | ||
