Place of Origin:
Henan, China
Brand Name:
Lanphan
Certification:
CE ISO
Model Number:
LPLS-HD
Video
Video
Video
Video
Autoclave Sterilizer Parameter
| Model technical data | LPLS-35HD(automatic) | LPLS-50HD(automatic) | LPLS-75HD(automatic) | LPLS100HD(automatic) |
| Chamber volume | 35L(φ318×450)mm | 50L(φ340×550) mm | 75L(φ400×600) mm | 100L(φ440×650) mm |
| working pressure | 0.22MPa | |||
| Working temperature | 134℃ | |||
| Max working pressure | 0.23 Mpa | |||
| Heat average | ≤1℃ | |||
| Timer | 0～99min or 0～99hour59min | |||
| Adjustment of temperature | 105～134℃ | |||
| Power | 2.5Kw/AC220V.50Hz | 3Kw/AC220V.50Hz | 4.5Kw/AC220V.50Hz | |
| Overall dimension | 470×450×1020(mm) | 520×500×1150(mm) | 550×530×1180 (mm) | 580×560×1290 (mm) |
| Transport dimension | 540×540×1140(mm) | 580×580×1250(mm) | 610×610×1280(mm) | 640×640×1360(mm) |
| G.W/N.W | 81Kg/63Kg | 94Kg/ 74Kg | 113Kg/ 93Kg | 125Kg/ 105Kg |
Autoclave Sterilizer Description

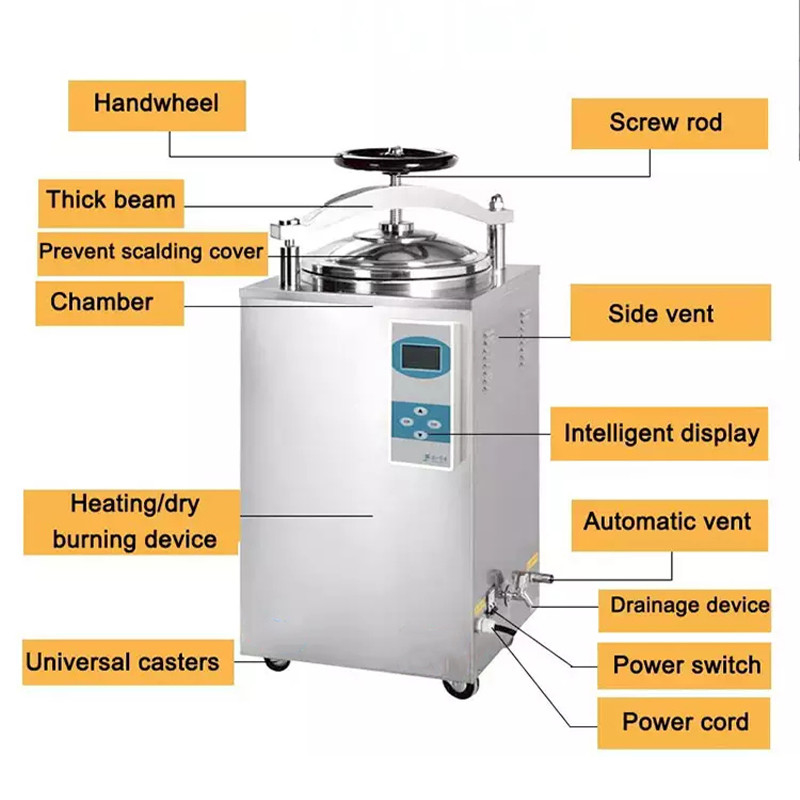

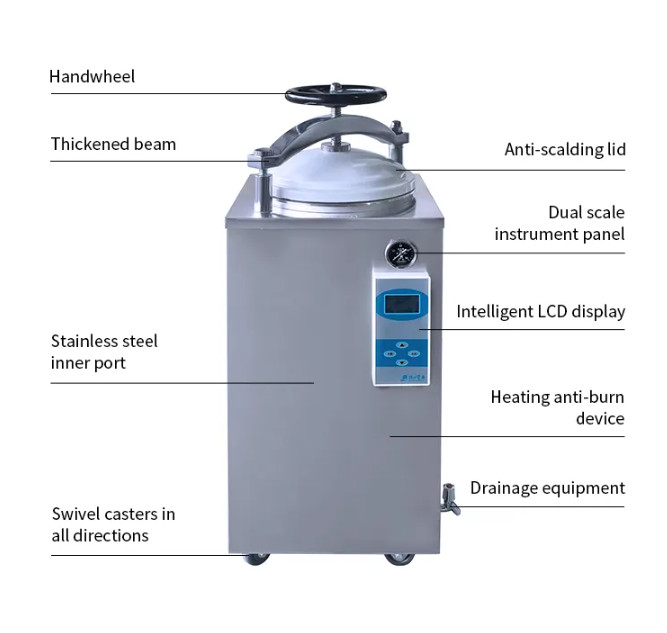

The vertical pressure steam sterilizer consists of a shell, a sterilization barrel, a steam generator, a microcomputer control system, and a power supply system.
Vertical pressure steam sterilizer (LPLS-35HD, LPLS-50HD, LPLS-75HD, LPLS-100HD, referred to as sterilizer) is a device that uses saturated steam to sterilize items. The sterilization chamber structure of this type of sterilizer is a single-layer structure, the steam supply is heated by an intrusive electric heating tube, the gas replacement method is a lower exhaust type, the sealing structure type is a beam structure, and the control method is microcomputer control.
Autocalve Sterilizer Application
Vertical autoclave sterilizers are widely used in the medical, dental, laboratory, and pharmaceutical industries to sterilize medical instruments, equipment, containers, and other objects. They are also used to sterilize liquids, media, and biological waste. Autoclaves are also used in industrial applications such as the processing of food, beverages, and other products.
