Place of Origin:
Henan, China
Brand Name:
Lanphan
Certification:
CE ISO
Model Number:
LPLS-HD
Video
Video
Video
Video
| Model technical data | LS-35HD(automatic) | LS-50HDI(automatic) | LS-75HD(automatic) | LS-100HD(automatic) |
| Chamber volume | 35L(φ318×450)mm | 50L(φ340×550) mm | 75L(φ400×600) mm | 100L(φ440×650) mm |
| working pressure | 0.22MPa | |||
| Working temperature | 134℃ | |||
| Max working pressure | 0.23 Mpa | |||
| Heat average | ≤1℃ | |||
| Timer | 0～99min or 0～99hour59min | |||
| Adjustment of temperature | 105～134℃ | |||
| Power | 2.5Kw/AC220V.50Hz | 3Kw/AC220V.50Hz | 4.5Kw/AC220V.50Hz | |
| Overall dimension | 470×450×1020(mm) | 520×500×1150(mm) | 550×530×1180 (mm) | 580×560×1290 (mm) |
| Transport dimension | 540×540×1140(mm) | 580×580×1250(mm) | 610×610×1280(mm) | 640×640×1360(mm) |
| G.W/N.W | 81Kg/63Kg | 94Kg/ 74Kg | 113Kg/ 93Kg | 125Kg/ 105Kg |
Autoclave Description

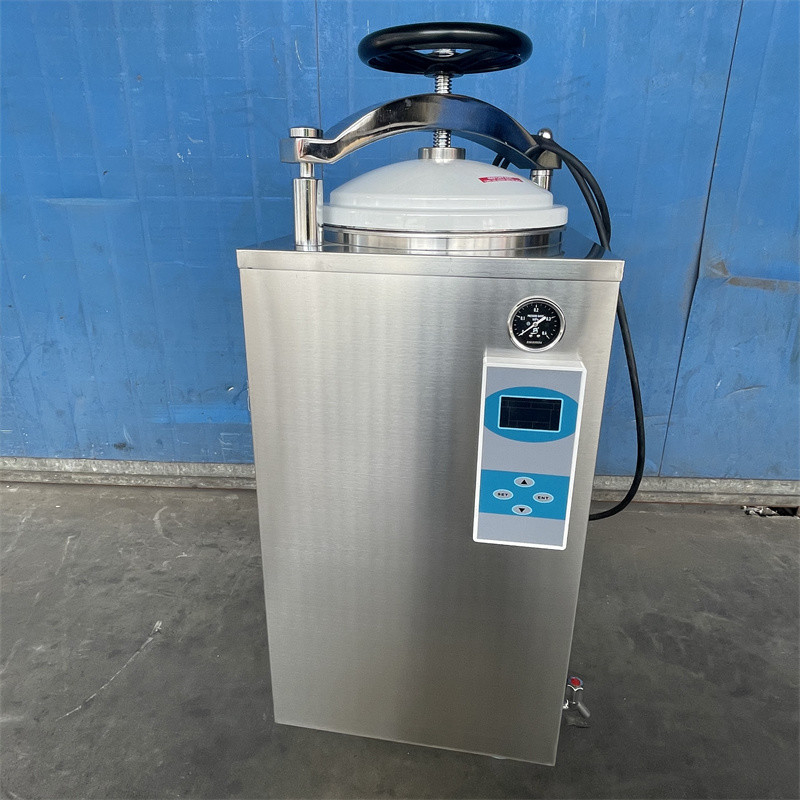

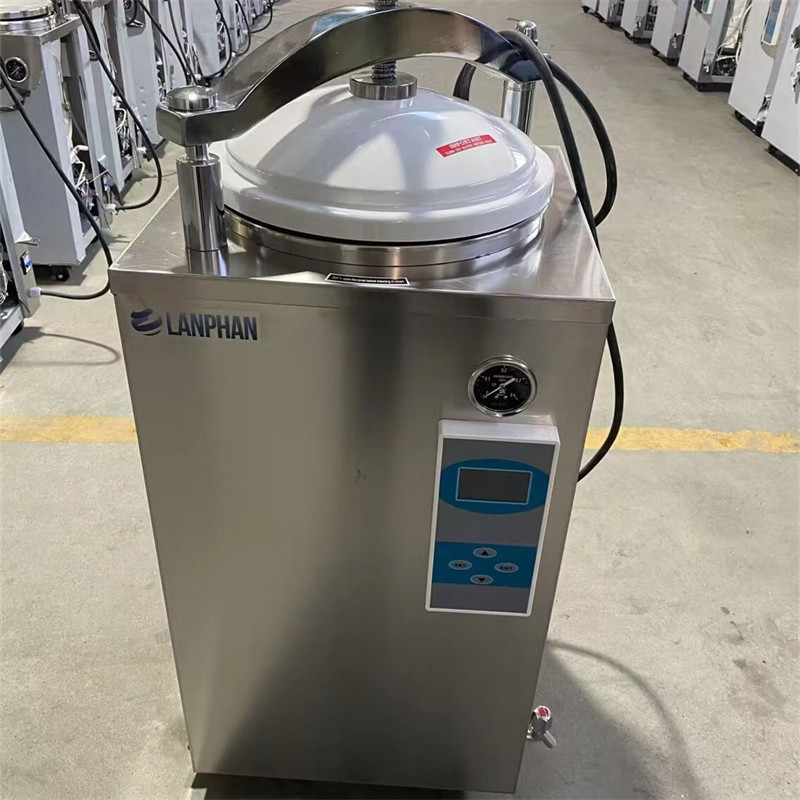

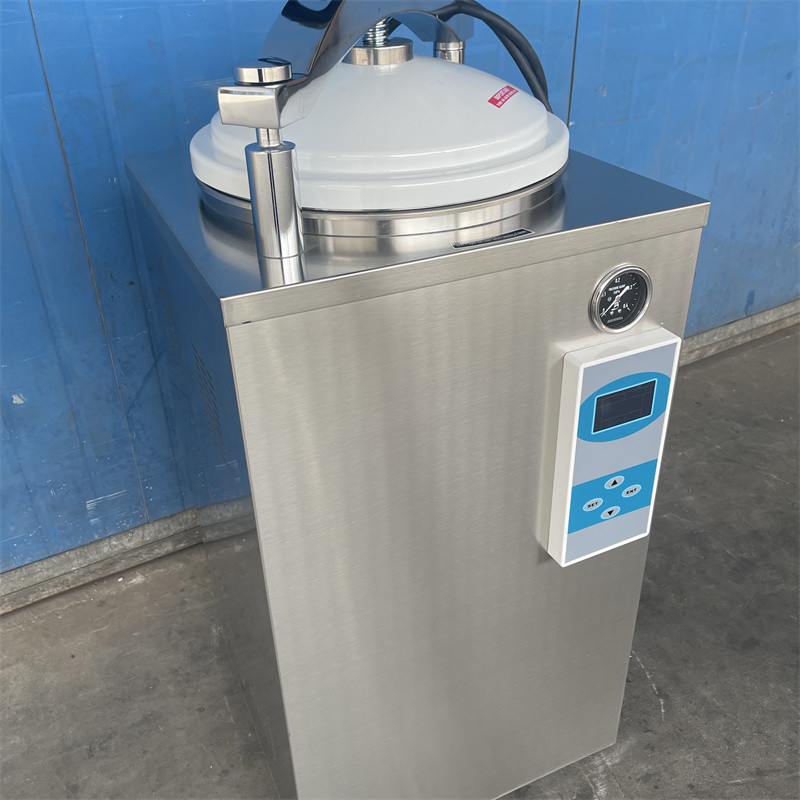

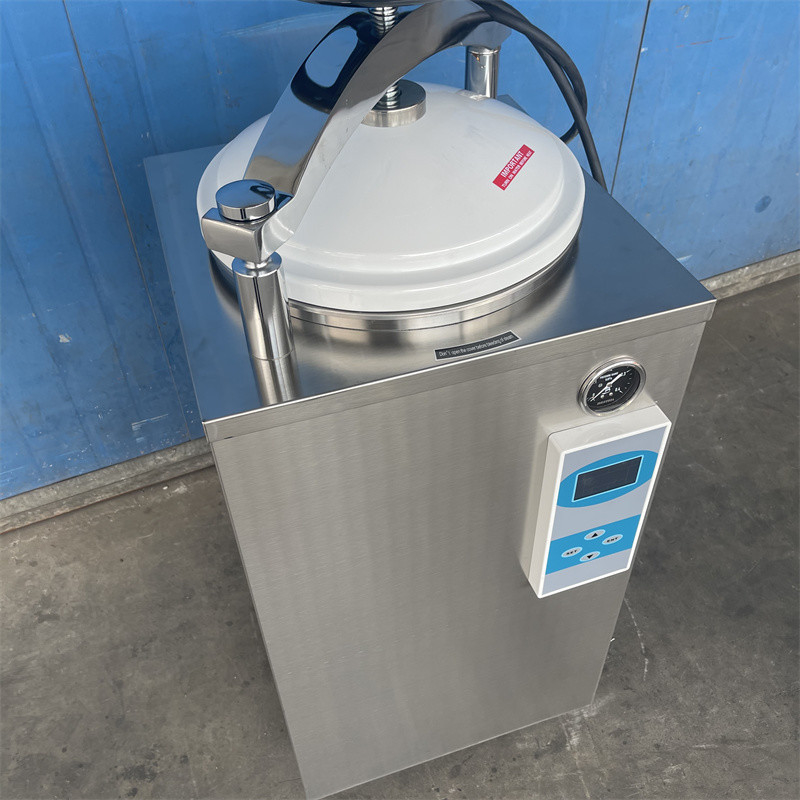

Vertical pressure steam sterilizer (LPLS-35HD, LPLS-50HD, LPLS-75HD, LPLS-100HD, referred to as sterilizer) is a device that uses saturated steam to sterilize items. The sterilization chamber structure of this type of sterilizer is a single-layer structure, the steam supply is heated by an intrusive electric heating tube, the gas replacement method is a lower exhaust type, the sealing structure type is a beam structure, and the control method is microcomputer control.
