Place of Origin:
China
Brand Name:
Lanphan
Certification:
CE ISO
Model Number:
TDP-5
Video
Video
Video
Video

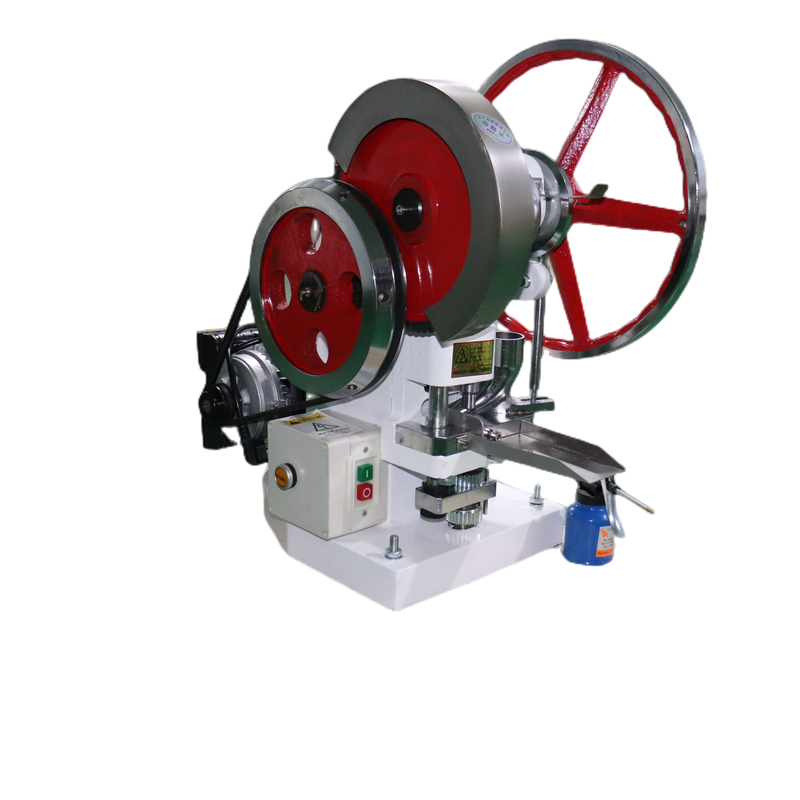

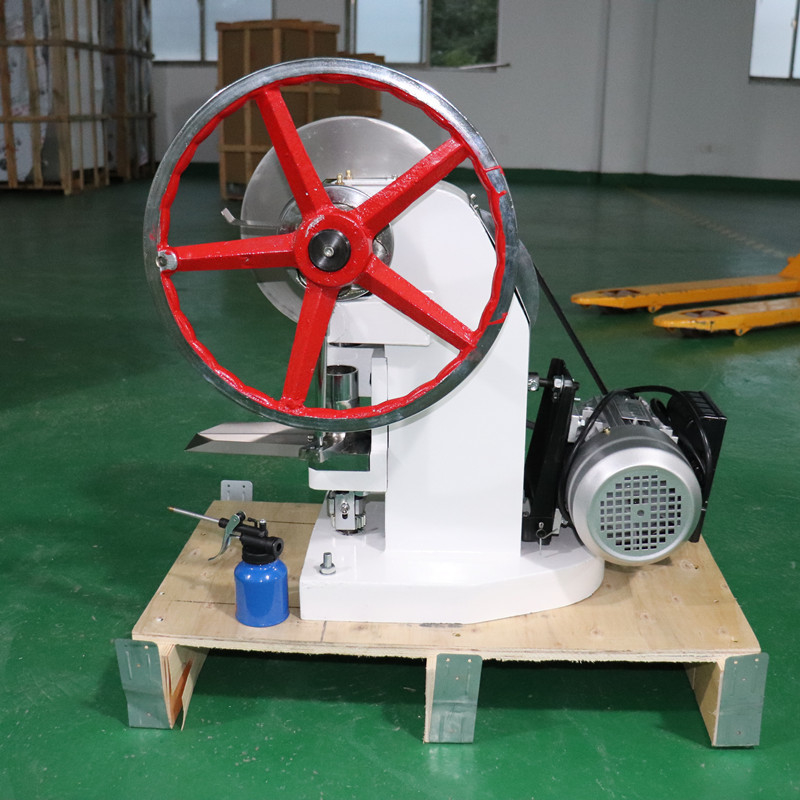

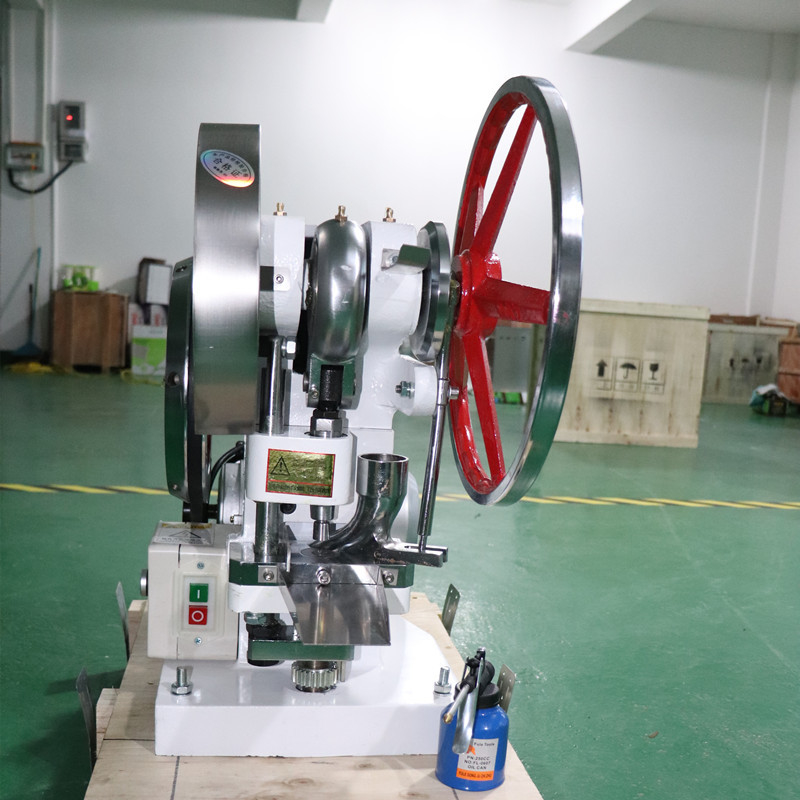

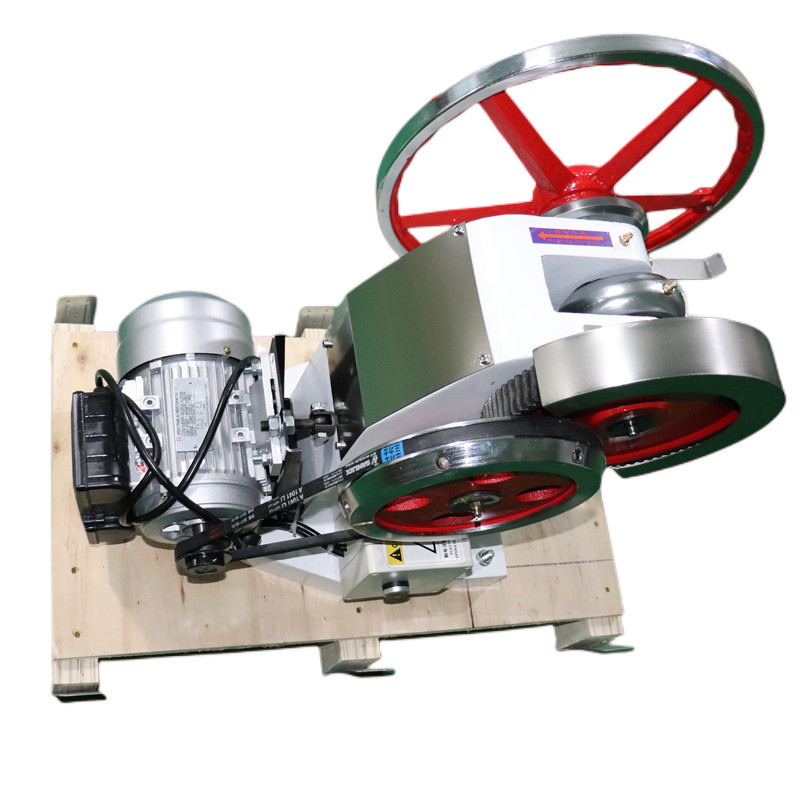

Mechanical Electrical Single Punch Tablet Pill Press Machine
Tablet Press Description
TDP Single Punch Tablet Press,which can press the powder material into tablet,can be widely used in pharmaceutical factory,chemical factory,hospital and R&D bureau.
This machine is with good performance,strong suitability,simple operation,easily repair,small cubage light.Even under the conditions or power cut,hand swing it available.Compare to original TDP model press machine,it is enlarged the machine intensive and engine power with bigger strength.In the meantime enlarge the filling depth,hence to expand the specification range of tablet.Therefore,this machine can meet the demand of difference kinds of Chinese traditional medicine and Western medicine and other similar product’s requirements.It’s deeply welcome by our customers in difference field.
Tablet Press Parameter
| Model | TDP-5Ton |
| Max.press strength(KN) | 50 |
| Max.tablet diameter(mm) | 16 |
| Max.filling depth(mm) | 12 |
| Productive capacity(pcs/h) | 1400 |
| Motor power(kw) | 0.75 |
| Turning speed(r/min) | 1400 |
| Weight(kg) | 125 |
| Length*width*height(mm) | 700*400*800 |
