Place of Origin:
Henan, China
Brand Name:
Lanphan
Certification:
CE ISO
Model Number:
LS-HD

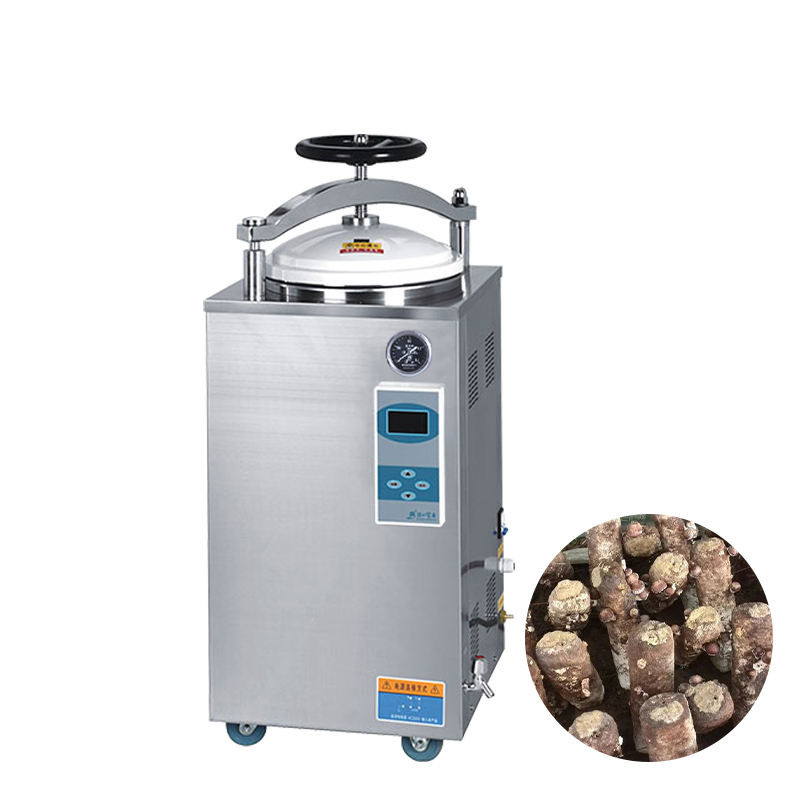

Vertical High Pressure Sterilizer Autoclave In The Mushroom Cultivation Industry
Vertical Autoclave Application
The vertical high-pressure sterilizer is widely applied in various industries, including but not limited to the following areas:
1. Healthcare Facilities: Vertical high-pressure sterilizers are commonly used in hospitals, clinics, operating rooms, and other healthcare facilities for sterilizing medical instruments, surgical tools, syringes, test tubes, culture dishes, and more. They effectively eliminate pathogenic microorganisms, ensuring the sterility of medical equipment and items.
2. Laboratories: In the field of scientific research and laboratory work, vertical high-pressure sterilizers are used to sterilize culture media, reagent bottles, laboratory equipment, glassware, and other experimental tools. This helps eliminate potential sources of contamination and ensures the accuracy and reliability of experiments.
3. Pharmaceutical Industry: The pharmaceutical sector requires strict aseptic conditions. Vertical high-pressure sterilizers are utilized to sterilize drug containers, raw materials, formulations, and other pharmaceutical products to ensure their purity and quality.
4. Food Processing Industry: In the food processing industry, vertical high-pressure sterilizers are used to sterilize food containers, packaging materials, food utensils, and more. This extends the shelf life of food products and ensures their safety and hygiene.
5. Brewing Industry: During the brewing process, vertical high-pressure sterilizers are employed to sterilize fermentation tanks, storage containers, pipelines, and other equipment, ensuring the cleanliness and quality of the brewing process.
6. Research Institutions: Research institutions frequently utilize vertical high-pressure sterilizers for microbial experiments and studies, eliminating experimental errors and ensuring accurate results.
In summary, the vertical high-pressure sterilizer finds extensive application in healthcare, laboratories, pharmaceuticals, food processing, and research industries. Its use ensures the sterilization of equipment and items, guaranteeing product quality and safety.
Vertical Autoclave Parameter
Model technical data |
LS-35LD (automatic) |
LS-50LD (automatic) |
LS-75LD (automatic) |
LS-100LD (automatic) |
LS-120LD (automatic) |
LS-150LD (automatic) |
|||
Chamber volume |
35L (φ318×450mm) |
50L (φ340×550mm) |
75L (φ400×600mm) |
100L (φ440×650mm) |
120L (φ480×660mm) |
150L (φ510×740mm) |
|||
working pressure | 0.22MPa | ||||||||
Working temperature | 134℃ | ||||||||
Max working pressure | 0.23 Mpa | ||||||||
Heat average | ≤±1℃ | ||||||||
Timer | 0~99min or 0~99hour59min | ||||||||
Adjustment of temperature | 105~134℃ | ||||||||
Power | 2.5Kw/220V.50Hz | 3Kw /220V.50Hz | 4.5KW 220V.50Hz | 6KW/220V.50Hz | |||||
Overall dimension |
470×450×840 (mm) |
520×500×970 (mm) |
550×530×990 (mm) |
580×560×1060 (mm) |
630×610×1130 (mm) |
660×640×1130 (mm) |
|||
Transport dimension |
540×540×970 (mm) |
580×580×1090 (mm) |
610×610×1110 (mm) |
640×640×1170 (mm) |
690×690×1240 (mm) |
730×730×1240 (mm) |
|||
G.W/N.W | 61Kg/ 46Kg | 73Kg/56Kg | 87Kg/67Kg | 95Kg/73Kg | 116Kg/ 101Kg | 130Kg/111Kg |
