Place of Origin:
Henan, China
Brand Name:
Lanphan
Certification:
CE ISO
Model Number:
LPLS-200LD
Stainless Steel Automatic Mushroom Autoclave Vertical High Pressure Steam Sterilizer
Automatic Sterilizer Description
200L vertical autoclave is a device used for high pressure sterilization with a capacity of 200 liters (L). It is usually used in medical, laboratory, pharmaceutical and other fields to sterilize various instruments, containers, culture media and other items.
Vertical autoclaves work by using high pressure steam and high temperatures to kill bacteria, viruses and other microorganisms. During the operation, the items are placed in a sealed container, and then steam is injected, and bacteria and other microorganisms are quickly killed by heating and high pressure.

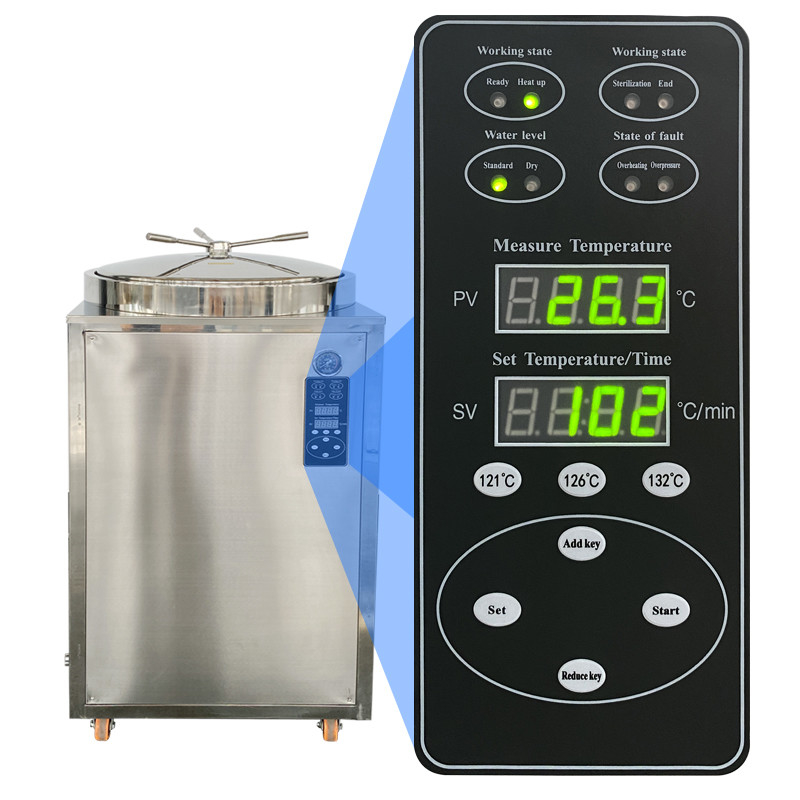

The 200L capacity means this vertical autoclave can accommodate larger items or multiple small items to be sterilized together. It has high sterilization efficiency and reliability, and usually has an automatic control system for precise control of temperature, pressure and processing time.
When using a vertical autoclave, you need to pay attention to the following points:
Proper operation of the device is required in accordance with the instructions in the device's operating manual.
Make sure the container and items can withstand high pressure and high temperature.
Appropriate sterilization times and temperatures must be used to ensure complete kill of microorganisms.
Before opening the equipment, it is necessary to wait for the pressure to drop to a safe level and follow the relevant safety operating procedures.
Vertical Autoclave Parameter
Product Model | LPLS-200LD |
Chamber Size |
200L Φ600×760mm |
Storage Size | Φ560*760mm |
Working Pressure | 0.22MPa |
Working Temperature | 134℃ |
Max Safety Pressure | 0.23MPa |
Heating Average | ≤±1℃ |
Timer Range | 0-9999mins |
Temperature Range | 50℃-134℃ |
Power | 8.0KW |
Voltage | 220V/380V |
Package Size | 810×810×1500 |
Gross Weight | 205Kg |
