Place of Origin:
China，Henan
Brand Name:
Lanphan
Certification:
CE
Model Number:
HFD-8
| Product Model | HFD-8 |
| Freeze-dried area | 1 M2 |
| Processing capacity | 10-12 kg/batch |

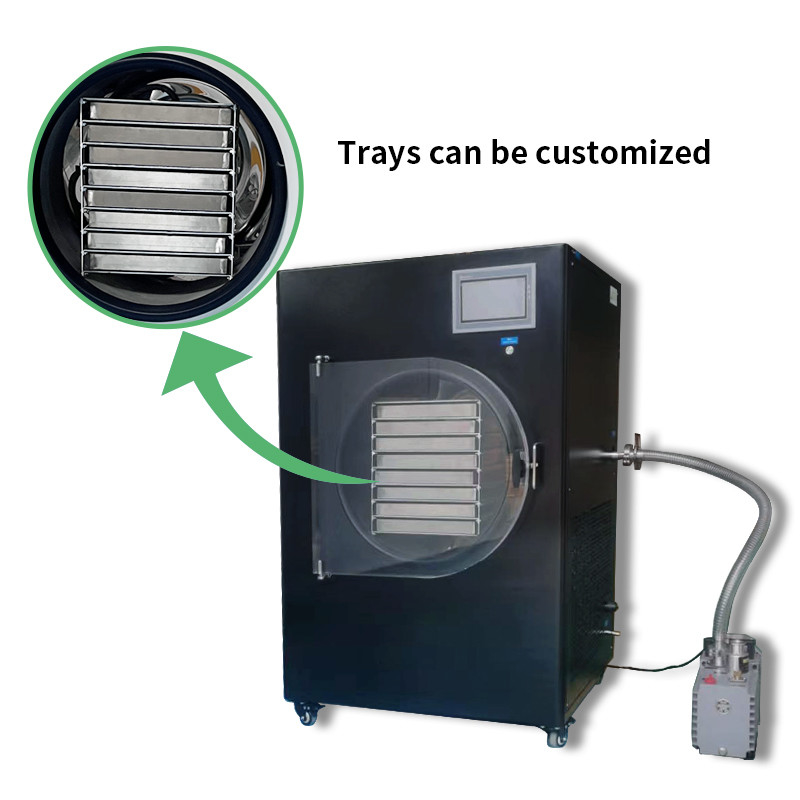

| Tray quantity | 8pcs |
| Tray size(mm) | 265*435*25 |
| Spacing between partitions | 40mm |
| Power(W) | 2500 |
| Ultimate vacuum | 15Pa |
| Cold trap temperature | ≤-40ºC |

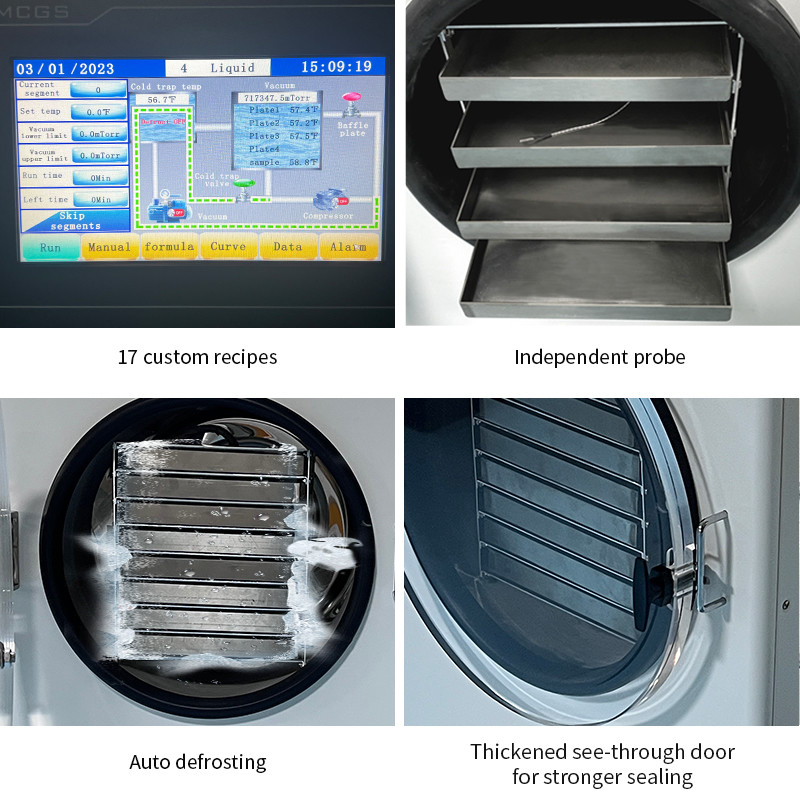

| Temperature probe | independent probe |
| Compressor | French Danfoss brand |
| Frame | Iron frame + Plastic spraying |
Installation step
(1)Open the package, check the components according to the packing list;
(2)Fill the pump’s oil into pump to the middle of the level guide.
Remark: Please using required oil type;

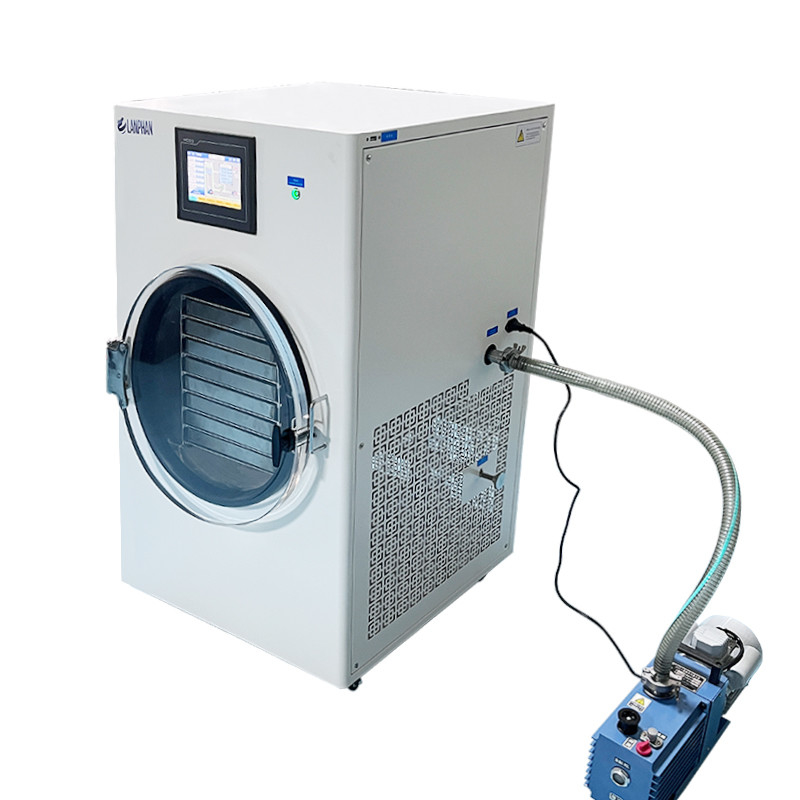

(3)Connect the pipe between pump and dryer by connectors. One side is fixed on pump’s air inlet, the other side is fixed on dryer’s vacuum outlet;
(4)Connect the pump’s power plug into dryer’s vacuum pump power outlet;
(5)Connect the power wire to dryer’s main power outlet, other side connect to power supply(with ground wire );
(6)Turn on the switch, test step by step according to the instructions. When all the technical data are satisfy (including vacuum <15Pa, condenser chamber’s temperature <-35℃), the dryer could be put into usage.
