Home > products > Steam Sterilizer Autoclave >
High Temperature Autoclave Food Steam Water Bath Sterilizer Medical Autoclave Sterilizer

High Temperature Autoclave Food Steam Water Bath Sterilizer Medical Autoclave Sterilizer

Food Steam Water Bath Sterilizer

High Temperature Autoclave Sterilizer

Medical Autoclave Sterilizer

Place of Origin:

China

Brand Name:

Lanphan

Certification:

CE

Model Number:

high temperature autoclave

Contact Us
Request A Quote
High Temperature Autoclave Food Steam Water Bath Sterilizer Medical Autoclave Sterilizer
High Temperature Autoclave Food Steam Water Bath Sterilizer Medical Autoclave Sterilizer High Temperature Autoclave Food Steam Water Bath Sterilizer Medical Autoclave Sterilizer High Temperature Autoclave Food Steam Water Bath Sterilizer Medical Autoclave Sterilizer
Product Details
Product Name:
High Temperature Autoclave
Capacity:
75L 100L 150L...
Application:
Cannned Food, Mushroom Substrate,medical Apparatus...
Sterilization Method:
Steam ,Water Bath
Processing Capacity:
25kg/ Batch,40kg/ Batch,65kg/ Batch
Working Temperature:
80-125℃
Working Pressure:
0.15-0.2Mpa
Voltage:
220V,380V
Highlight:

Food Steam Water Bath Sterilizer

,

High Temperature Autoclave Sterilizer

,

Medical Autoclave Sterilizer

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
$2690/unit
Packaging Details
wooden case packing
Delivery Time
5-15 working days
Payment Terms
L/C, T/T , Western Union...
Supply Ability
600 units per month
RELATED PRODUCTS
Good price Automatic Sterilizer Retort Autoclave Laboratory Vertical Steam Water Bath Milk online Video

Automatic Sterilizer Retort Autoclave Laboratory Vertical Steam Water Bath Milk

Get Best Price
Good price Automatic Retort Sterilizer Autoclave Machine Aluminum Foil Pouches For Canned Food online Video

Automatic Retort Sterilizer Autoclave Machine Aluminum Foil Pouches For Canned Food

Get Best Price
Good price Industrial Vertical Autoclave 100 Litres Water Spray Retort Equipment For Bottle online Video

Industrial Vertical Autoclave 100 Litres Water Spray Retort Equipment For Bottle

Get Best Price
Good price 75l 100l 150l High Pressure Food Counter Pressure Retort Sterilizer For Bottled Food online Video

75l 100l 150l High Pressure Food Counter Pressure Retort Sterilizer For Bottled Food

Get Best Price
Contact Us
+8613783661974
yang@lanphan.com
Contact Now
Product Description

High Temperature Autoclave Food Steam Water Bath Sterilizer Medical Autoclave Sterilizer

High Temperature Autoclave Parameter



Model S75 S100 WB75E WB100E WB150E
Sterilization method Steam Steam Steam & Water bath Steam & Water bath Steam & Water bath
Chamber Volume 75L 100L 75L 100L 150L
Processing capacity 25kg/batch 40kg/batch 25kg/batch 40kg/batch 65kg/batch
Basket size (mm) Ø370*540(one) Ø370*360(two) Ø370*540(one) Ø370*360(two) Ø470*360(two)
Inner barrel size(mm) Ø400*600 Ø400*800 Ø400*600 Ø400*800 Ø500*800
Working Temperature 80-125℃
Working Pressure 0.15-0.2Mpa
Rated Power 4.5KW 6KW 12KW 15KW
Voltage 220V 380V
Overall dimension(mm) 720*890*1100 720*900*1330 665*890*1100 665*890*1520 765*990*1560



High Temperature Autoclave Working Principle:



The purpose of a retort sterilizer is to process food at high temperature and high pressure. Basically, food containers are placed in the processing chamber of the sterilizer and then steam and other hot water are injected to heat the chamber. After meeting the required temperature and pressure conditions, the food is stored in these conditions for a certain period of time to ensure the destruction of microorganisms. After that, the pressure is gradually reduced, the processing chamber is opened, and the food container is removed, and the sterilization and pasteurization process is completed.



In summary, the retort sterilizer is an important tool used in food processing to ensure food safety and long-term preservation through high-heat and high-pressure processing. This equipment is widely used in the food industry to prepare canned goods, packaged products and other foods that require sterilization.

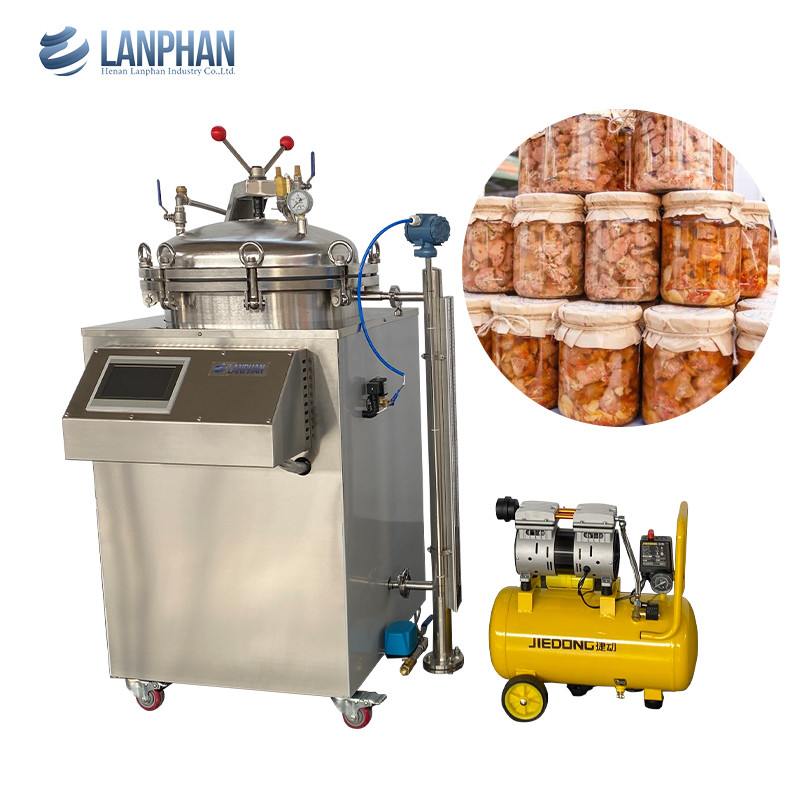

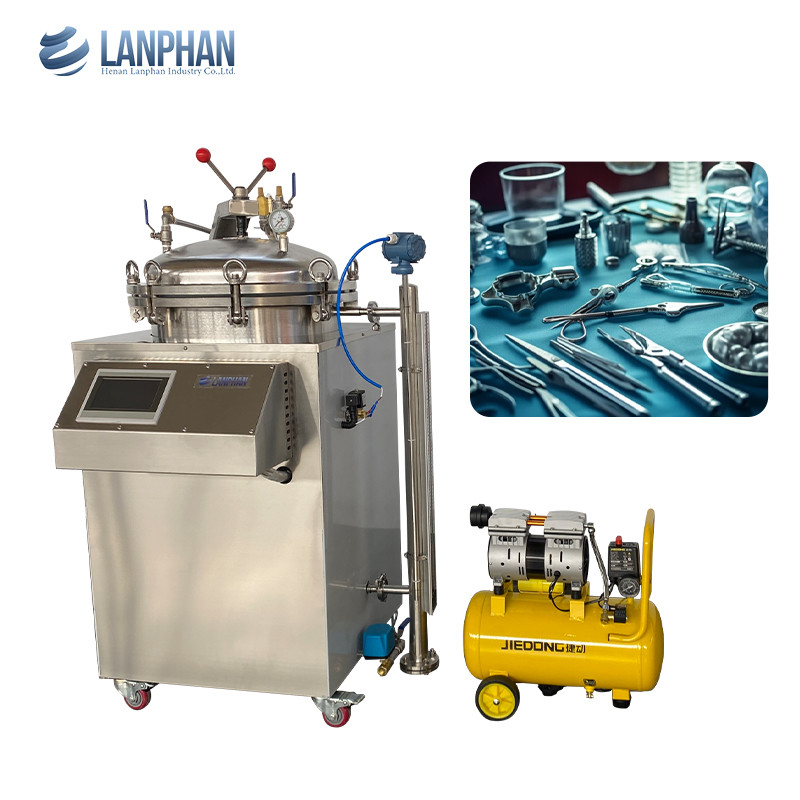

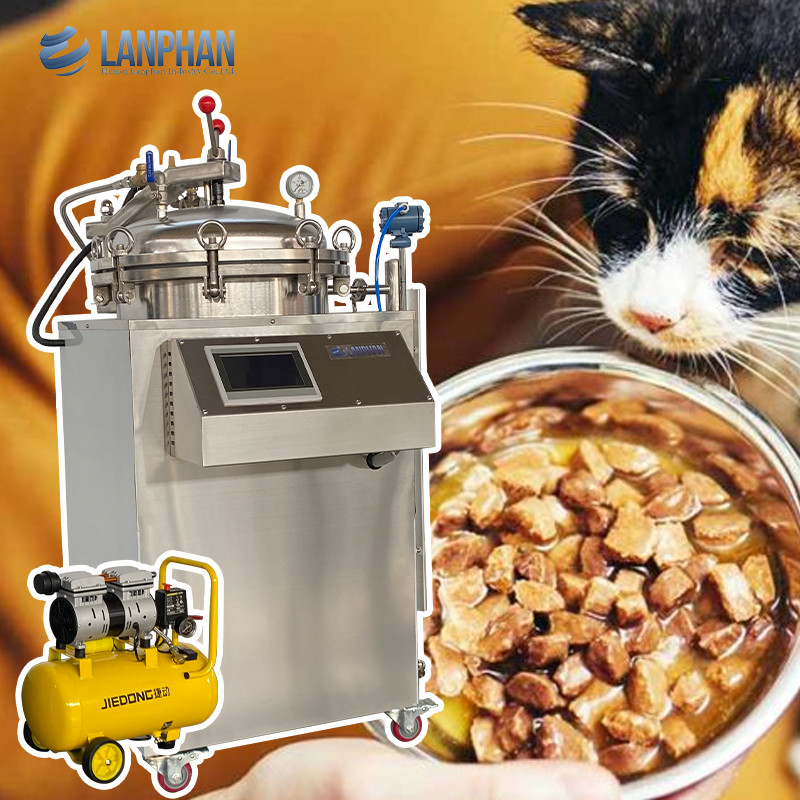

High Temperature Autoclave Application

High Temperature Autoclave Food Steam Water Bath Sterilizer Medical Autoclave Sterilizer 0

High Temperature Autoclave Parts

High Temperature Autoclave Food Steam Water Bath Sterilizer Medical Autoclave Sterilizer 1

High Temperature Autoclave Food Steam Water Bath Sterilizer Medical Autoclave Sterilizer 2

High Temperature Autoclave Structure

High Temperature Autoclave Food Steam Water Bath Sterilizer Medical Autoclave Sterilizer 3
