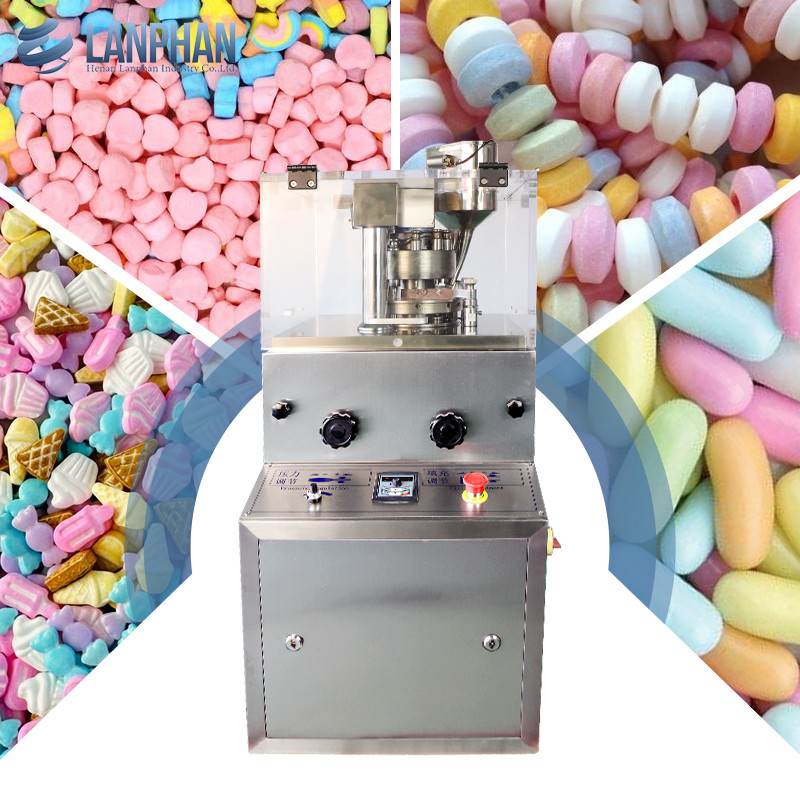

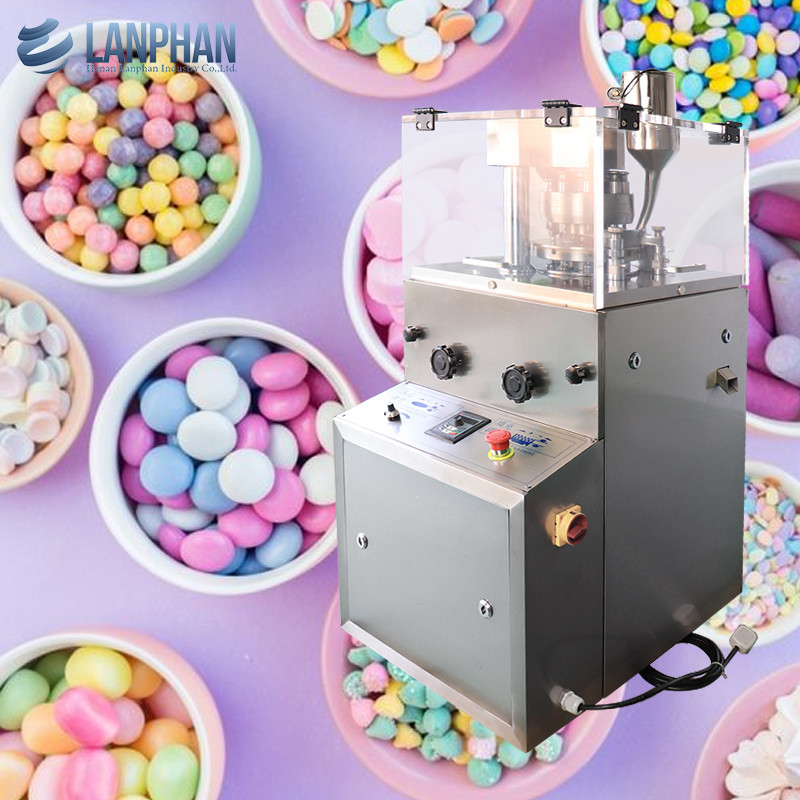

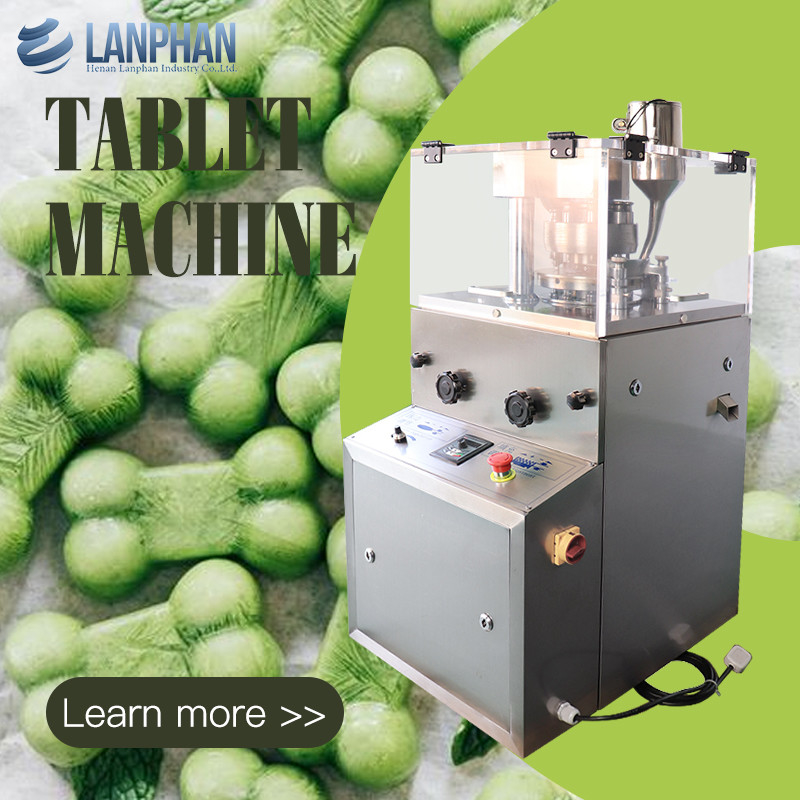

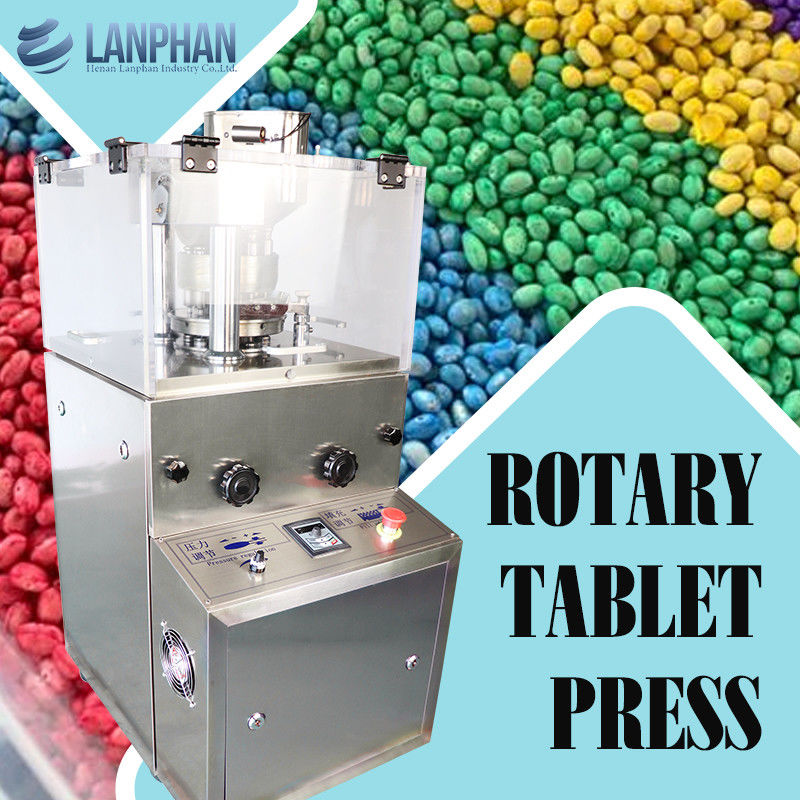

Zp-9 Rotary Tablet Machine Automatic Candy Pharmaceutical Powder Rotary Tablet Press
Tablet Press Machine Advantage
1. This machine is a small rotary tablet press equipment. The main motor adopts frequency converter stepless speed regulation, the starting speed is low, and the production speed is continuously adjustable;
2. Imported frequency converter, with manual control of tablet weight function, main motor overload protection, main pressure overload protection function;
3. The main drive system adopts worm gear reducer, which has large output torque, high transmission efficiency, stable transmission, low noise and long service life;
4. The tablet pressing room is completely sealed, and all parts in contact with the medicine are made of stainless steel or non-toxic polymer materials, which fully meets the requirements of GMP;
According to customer needs, it can realize the pressing function of ring-shaped tablet and the pressing function of spherical tablet.
Tablet Press Machine Parameters
| Model | ZP-5 | ZP-7 | ZP-9 |
| Number of die (paid) | 5 | 7 | 9 |
| Max tablet pressure (kN) | 60 | 60 | 60 |
| Max tablet diameter (mm) | 18mm | ||
| Max filling depth (mm) | 15 | 15 | 15 |
| Maxtablet thickness (mm) | 6 | 6 | 6 |
| Turn table speed (rev/min) | 30 | 30 | 30 |
| Production capacity (pieces/hour) | 9000 | 12600 | 16200 |
| Motor power (kw) | 2.2 | ||
| Dimensions (mm) | 960*660*1230 | ||
| Weight (kg) | 308 | ||
Tablet Press Description
This machine is a new type of customized ZP-5, 7, 9, 11, 12-punch Rotary tablet press, which is a automatic rotating, continuous tableting machine, which compresses granular raw materials into various tablets.This equipment is suitable for use in hospitals, medical research institutes, laboratories, universities, small pharmaceutical factories and health care plants, and is well received by customers Favor.
