Place of Origin:
Henan, China
Brand Name:
Lanphan
Certification:
contact us
Model Number:
LPFD
| Model | LPFD-1 | LPFD-3 | LPFD-5 | LPFD-10 | LPFD-15 | LPFD-20 | LPFD-30 | LPFD-40 | LPFD-50 |
| Input quantity(kg/batch) | 10 | 30 | 50 | 100 | 150 | 200 | 300 | 400 | 500 |
| Usable shelf area(m2) | 1.1 | 3.1 | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| Shelf working t emperature (ºC) | -50~60ºC | ||||||||
| Shelf clearance(mm) | 80 | 70 | 75 | 70 | 85 | 70 | 80 | 75 | 80 |
| Shelf layer | 5+1 | 7+1 | 8+1 | 11+1 | 11+1 | 14+1 | 13+1 | 16+1 | 18+1 |
| Shelf number (pcs) | 6 | 8 | 9 | 12 | 12 | 15 | 14 | 17 | 19 |
| Temperature difference of shelf (ºC) | ±1ºC | ||||||||
| Condenser lowest temperature (ºC) | -50~-65ºC | ||||||||
| Condenser capacity (kg) | 15 | 45 | 75 | 150 | 225 | 300 | 350 | 550 | 600 |
| Cooling method | Water cooling or air cooling | Water cooling | |||||||
| Cooling water consumption (T/hr) | 5 | 5 | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| Defrost water consumption (T/hr) | 1 | 1 | 2 | 3 | 5 | 5 | 5 | 5 | 8 |
| Defrost method | Spray and immersion | ||||||||
| Electric heating/Power (kw) | 3 | 4 | 8 | 16 | 20 | 24 | 28 | 32 | 32 |
| Operating environment | (Temperature)5ºC-30ºC (Moisture degree)<75% | ||||||||
| Total power (kw) | 12 | 16.55 | 22 | 60 | 64 | 74 | 101.2 | 120.2 | 170 |

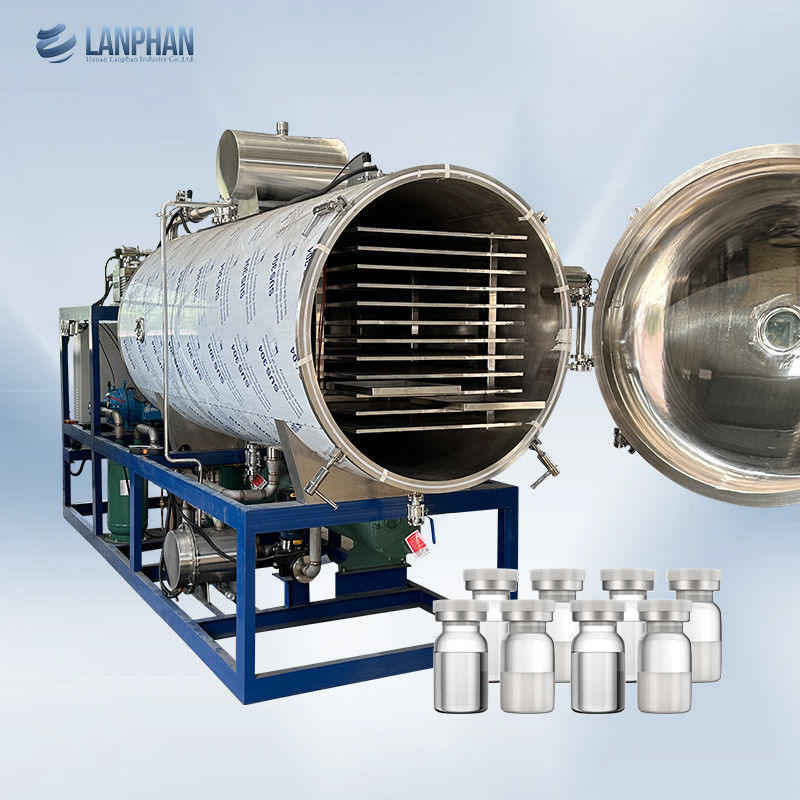

An industrial freeze dryer is a specialized equipment used for preparing dried products. It finds wide applications in industries such as food, pharmaceuticals, chemical engineering, biotechnology, etc., to convert liquid or semi-solid substances into dried powders or solid forms through a process involving freezing and vacuum drying. Here is a brief introduction to an industrial freeze dryer.

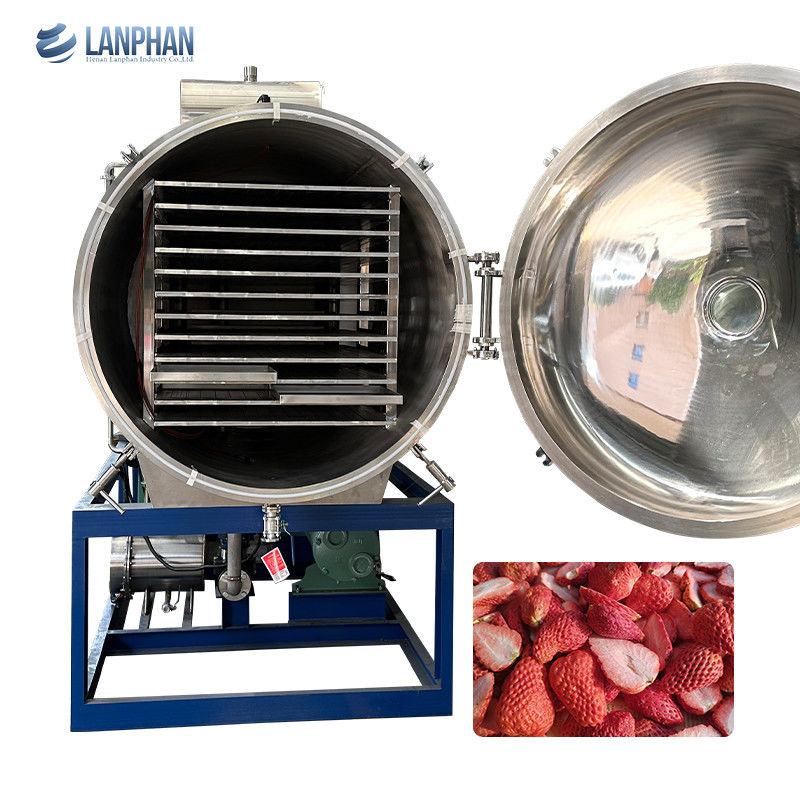

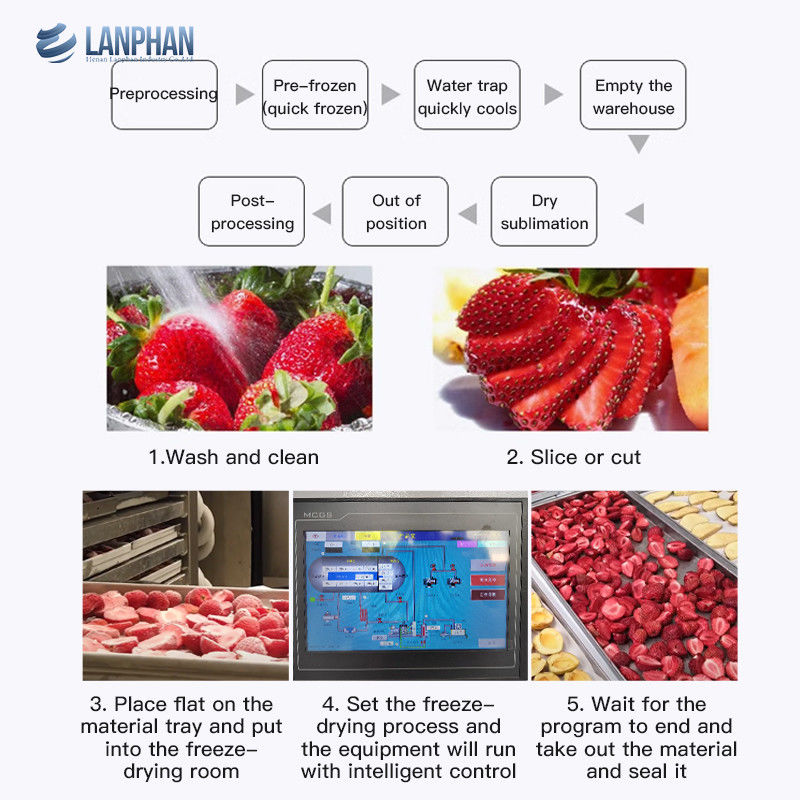

Freeze drying equipment, known as lyophilization equipment, working principle is sublimation in a vacuum. The input capacity of LPFD-500 is 500kg per batch. The LPFD-500 freeze drying equipment is used for producing top quality lyophilized food. The water in the fresh product is quickly frozen to -50°C becoming ice. And the ice is sublimated in o vapor and removed out of the product, collected on a low temperature vapor condenser. The product is dried 100% natural, without shape changing, color changing, nutrition lost, flavor lost, longer shelf time without additives and preservatives. The LPFD-500 freeze drying equipment is widely used in food industry to freeze dry fruits, vegetables, plants, meat, sea food, cooked food, milk, coffee, pet food etc.
.
LPFD series contact type freeze dryer, the shelf has both heating and cooling functions; conform to the GMP standards. It's suitable for laboratory test and a small amount of production.
