Place of Origin:
China
Brand Name:
Lanphan
Certification:
CE
Model Number:
Fluidized bed granulation dryer
Video
Video
| Model | FL-3 | FL-5 | FL-15 | FL-30 | FL-60 | FL-120 | FL-200 | FL-300 | FL-500 |
| Loading capacity (kg) | 1.5~4.5 | 4~6 | 10~20 | 15~45 | 30~90 | 80~160 | 100~300 | 150~450 | 250~750 |
| Capacity (L) | 12 | 22 | 45 | 100 | 220 | 420 | 670 | 1000 | 1500 |
| Diameter (mm) | 300 | 400 | 550 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 |
| Air volume (m3/h) | 1000 | 1200 | 1400 | 1800 | 3000 | 4500 | 6000 | 7000 | 8000 |
| Air pressure (mmH2O) | 375 | 375 | 480 | 480 | 950 | 950 | 950 | 950 | 950 |
| Fan power (kw) | 3 | 4 | 5.5 | 7.5 | 11 | 18.5 | 22 | 30 | 45 |
| Heating method | Electric heating | Steam heating | |||||||
| Power/steam volume | 12 kw | 15 kw | 21 kw | 36 kw | 141 kg/h | 211 kg/h | 282 kg/h | 366 kg/h | 451 kg/h |
| Compressed air consumption (kg/h) | 0.9 | 0.9 | 0.9 | 0.9 | 1 | 1 | 1.1 | 1.5 | 1.5 |
| Heating temperature | Rt~120ºC | ||||||||

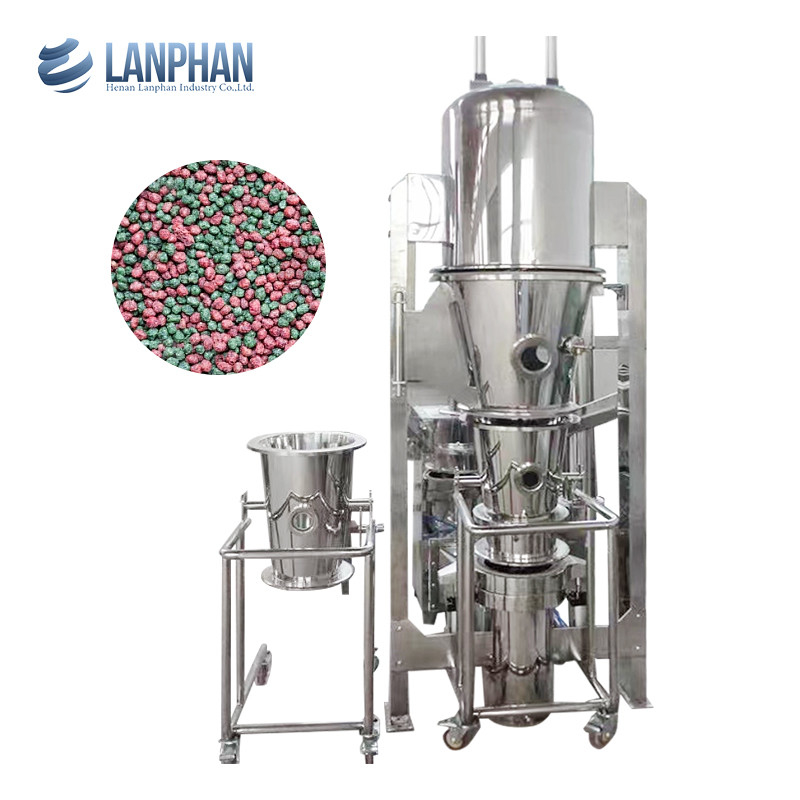

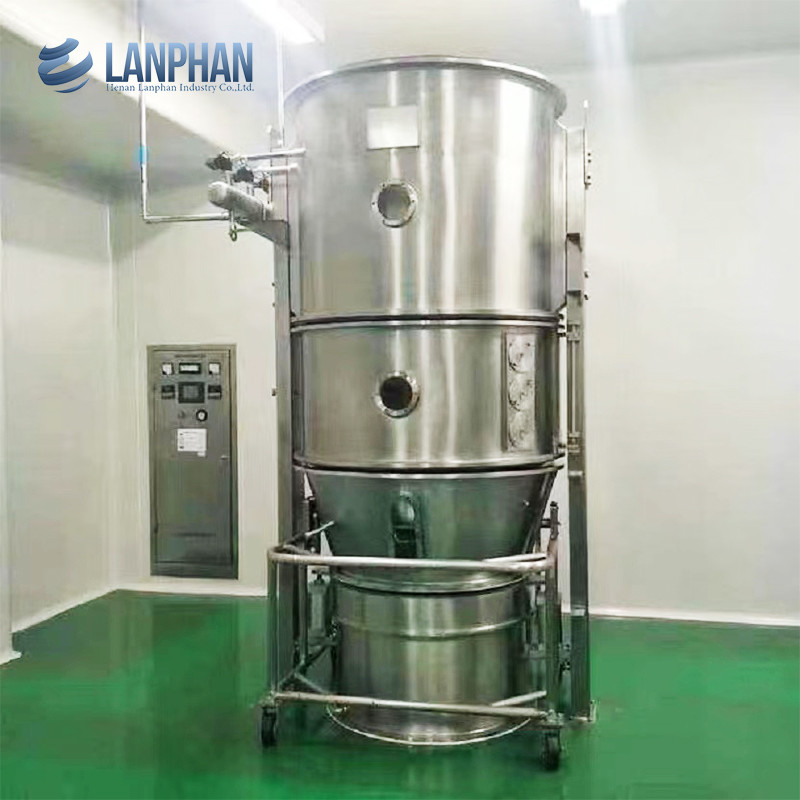

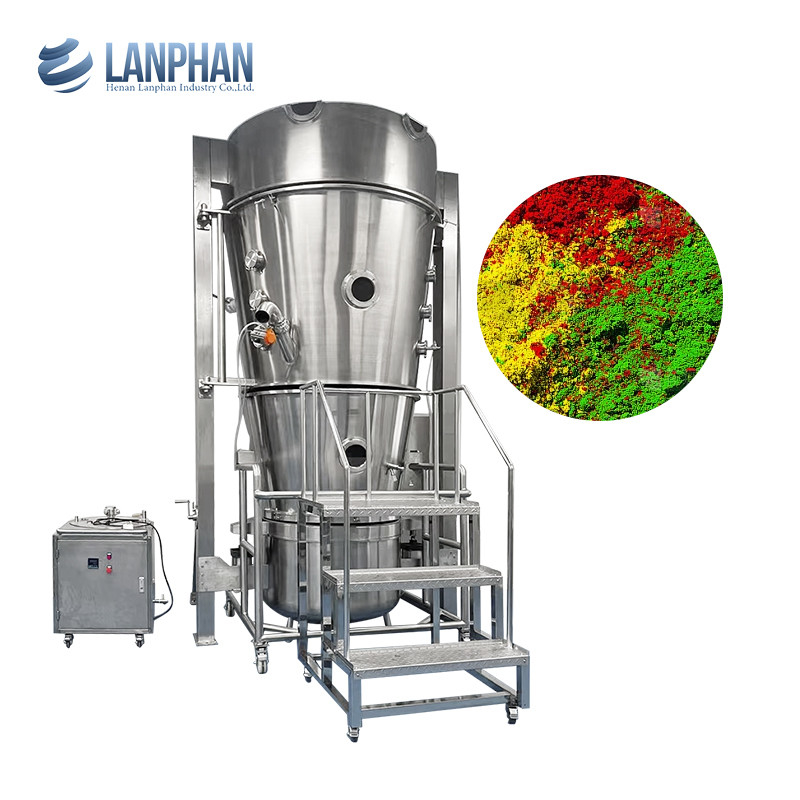

FL series fluidized bed drying granulator is the equipment that combines mixing, granulation, and drying in one closed container.

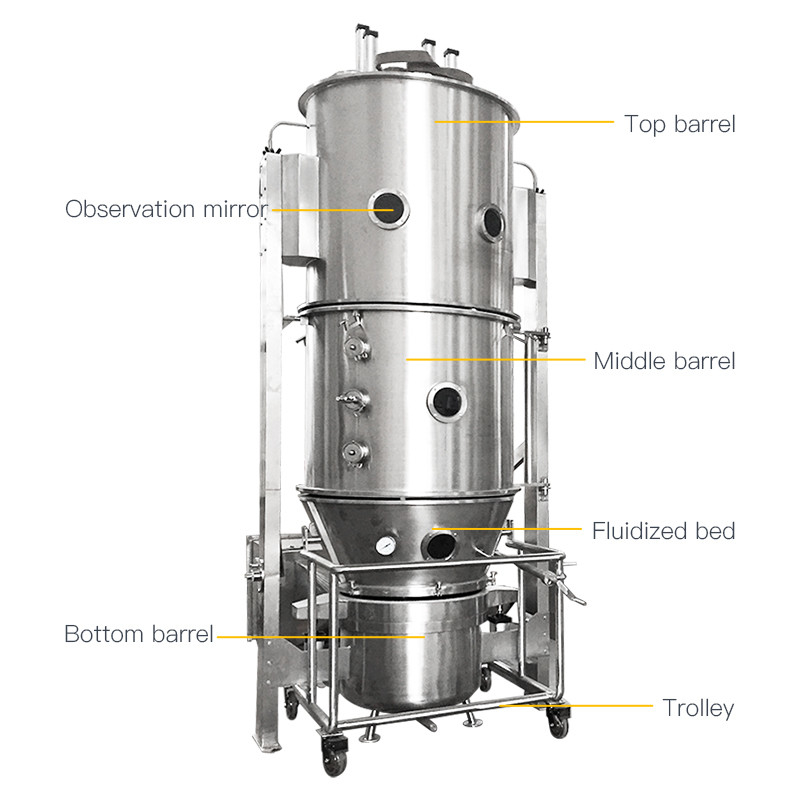

The equipment is of vertical structure, it is generally composed of blower, air filter, heater, fluidized bed host ( composed of bottom barrel, middle barrel,top barrel, and material trolley), induced draft fan and control cabinet. Depending on the nature of materials, cyclone separator or bag filter can be selected as required. The structure is simple and easy to operate.
