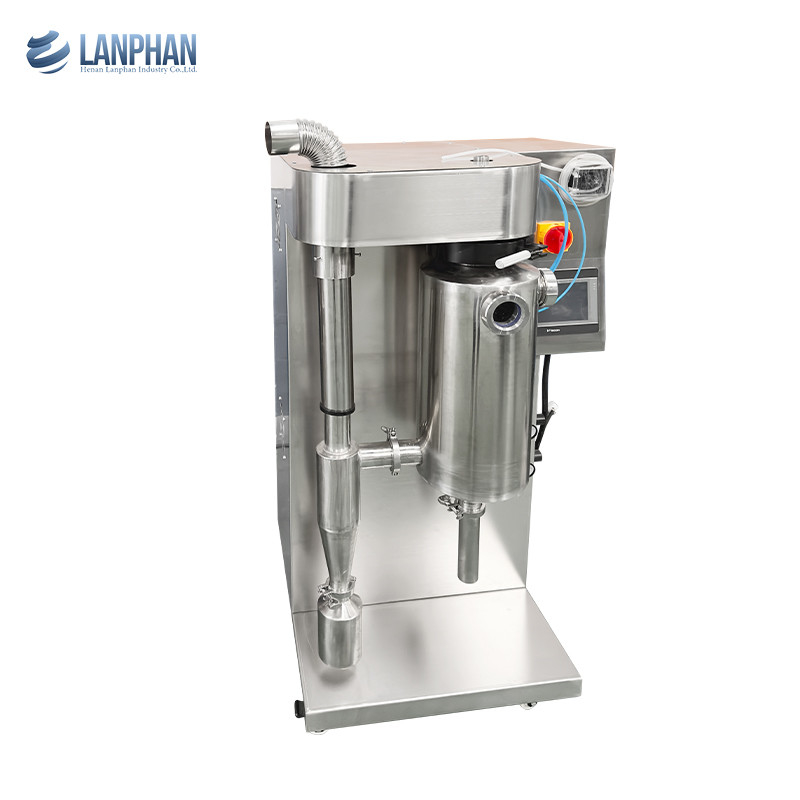

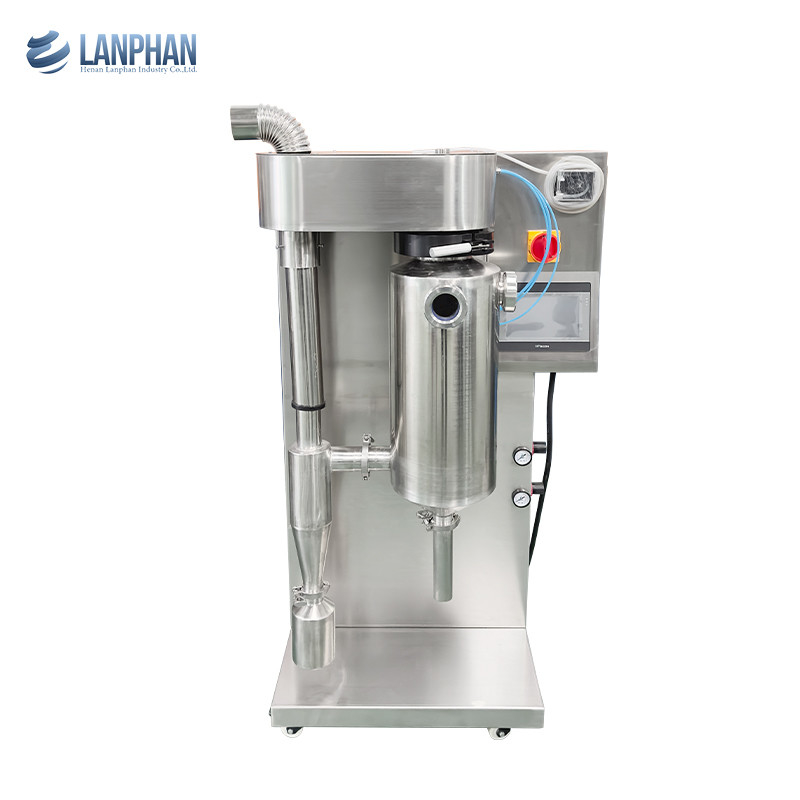

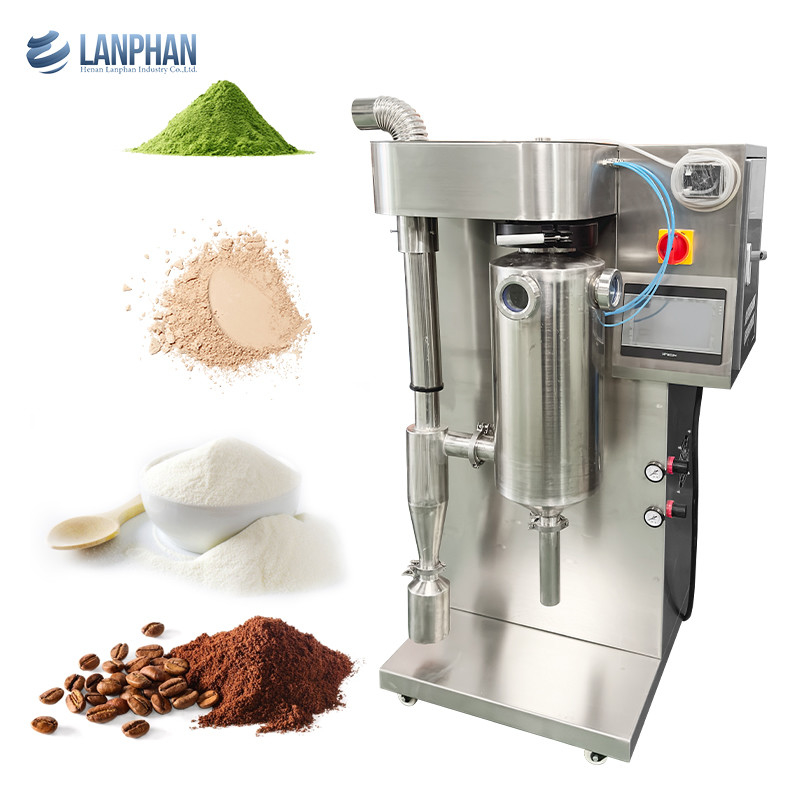

2000ml/h Evaporation Rate Stainless Steel Laboratory Spray Dryers Powder Making Machine

2000ml/h evaporation rate stainless steel laboratory spray dryers powder making machine

laboratory spray dryers description

Rotary atomizer spray dryer is a wide applied process in liquid process shaping and drying industry. Particularly it is suitable for producing powder, granule or block solid product from solution, emulsion, suspending liquid and pumped paste liquid. Therefore when the distribution of granule size, final moisture, bulk density, granule shape of finished product must be conformed to accuracy standard, the spray drying is an ideal process.

laboratory spray dryers application

Laboratory spray dryers are mainly used in the laboratories of colleges and universities, scientific research institutes, food, pharmaceutical and chemical companies to produce fine powders and apply them to a wide range of emulsions, suspensions, biological products and other solutions, biological plant materials can only be partitioned into atomized a nights at low temperatures, then heat-resistant substances such as enzyme preparations and so on can be kept dry by instantaneous heat alone, and their active ingredients can be preserved intact.

laboratory spray dryers Working Principle

After filtering and heating, the hot fresh air enter into the air distributor at the top of drying chamber, distributed in spiral way uniformly from up to down. At the same time, the feeding liquid is pumped to the top atomizer, then be sprayed to extremely fine mist liquid drop. Through the short time of direct contact with hot air, the moisture evaporated at once, the solid remains to be powder. The dry powder will be discharged continuously from the bottom of drying tower and cyclone collector, the exhaust air will be discharged after cleaning

laboratory spray dryers Parameter

​

​
