Place of Origin:
China，Henan
Brand Name:
Lanphan
Certification:
CE
Model Number:
LPA
| Product Model | LPA-20 | LPA-40 | LPA-60 | LPA-90 | LPA-125 | LPA-250 |
| Total Volume | 25 L | 60 L | 80 L | 120 L | 150 L | 320 L |
| Charging Volume | 20 L | 40 L | 60 L | 90 L | 125 L | 250 L |
| Recovery Time | about 2 hours | about 3 hours | about 3.5 hours | about 4 hours | about 4.5 hours | about 5.5 hours |
| Heating Temperature | RT~210ºC | RT~210ºC | RT~210ºC | RT~210ºC | RT~210ºC | RT~210ºC |
| Coolong Method | air cooling | air cooling/water cooling | air cooling/water cooling | air cooling/water cooling | air cooling/water cooling | air cooling/water cooling |
| Environment Temperature | 5~30ºC | 5~30ºC | 5~30ºC | 5~30ºC | 5~30ºC | 5~30ºC |
| Charging Method | Manual Charging | Manual Charging | Manual Charging | Manual Charging | Manual Charging | Manual Charging |
| Discharging Method | Dumping | Dumping | Dumping | Dumping | Dumping | Dumping |
| Recovery Rate | ≥95% | ≥95% | ≥95% | ≥95% | ≥95% | ≥95% |
| Power | 220V/50HZ | 220V/380V/50HZ | 220V/380V/50HZ | 3P/380V/50HZ | 3P/380V/50HZ | 3P/380V/50HZ |
| Dimension | 920*730*1350 | 825×638×1280 | 1160*820*1480 | 1270*900*1420 | 1630*950*1660 | 2100*1130*1950 |
| Net Weight | 100 KG | 150 KG | 160 KG | 200 KG | 260 KG | 520 KG |

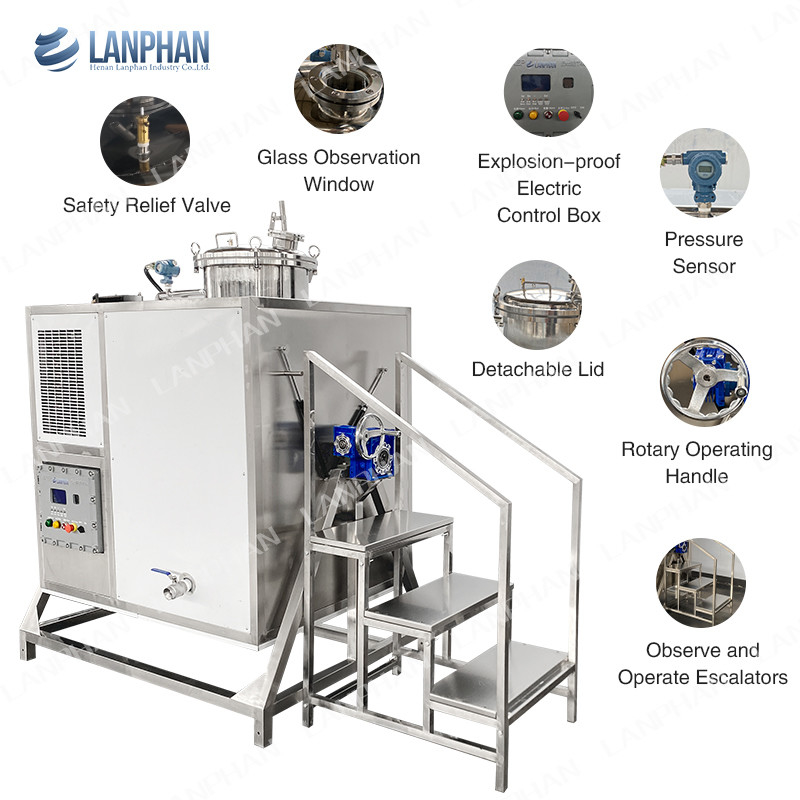

The solvent recovery machine has the following advantages:
1. The whole machine and parts can adopt explosion-proof safety design.
2. Intelligent PID, PLC digital control system.
The independently developed PID, PLC control system is one of the most advanced operation control systems, with automatic digital display control. Accurately control the heating temperature. Multi-program control can be set for different solvent recovery, and the automated production equipment does not need special supervision.

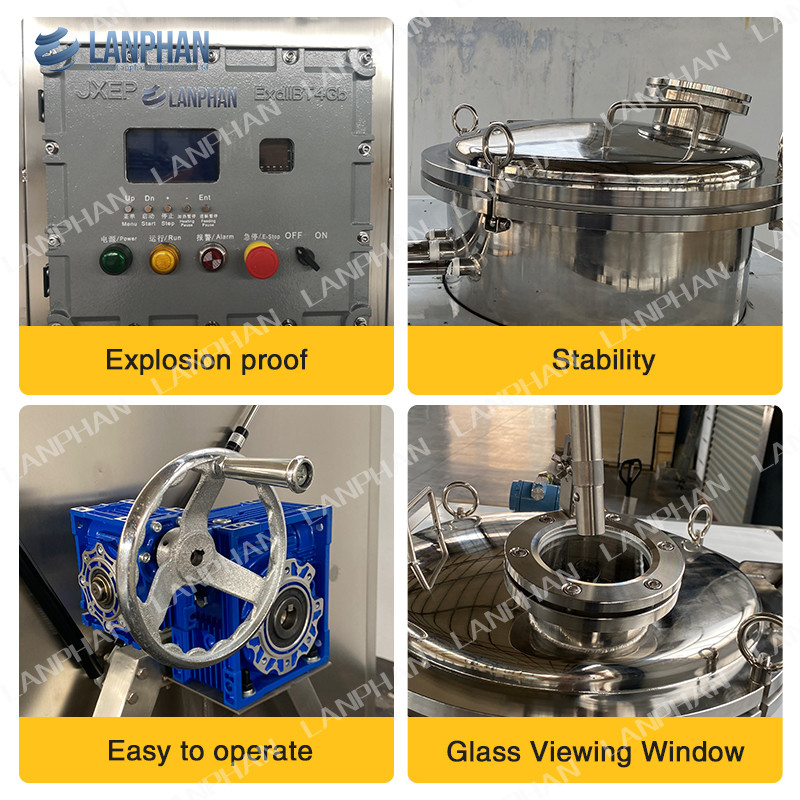

3. Specially designed electric control box.
The explosion-proof operating mechanism features that the safety parameters can be set without opening the control box, which is suitable for operation in an explosion-proof environment
4. The sealing ring of the solvent recovery machine is produced by independent molding to ensure that the solvent gas solvent will not leak and avoid danger. Under normal operation, the cleaning machine is guaranteed for one year.
5. Machine body, recovery barrel and temperature control.
The barrel body is made of stainless steel, double-layer structure, indirect heating, reinforced barrel cover design, precise 32-stage temperature control, digital display of heating and steam recovery time, explosion-proof, leak-proof, all-stainless steel body, easy to clean and maintain.

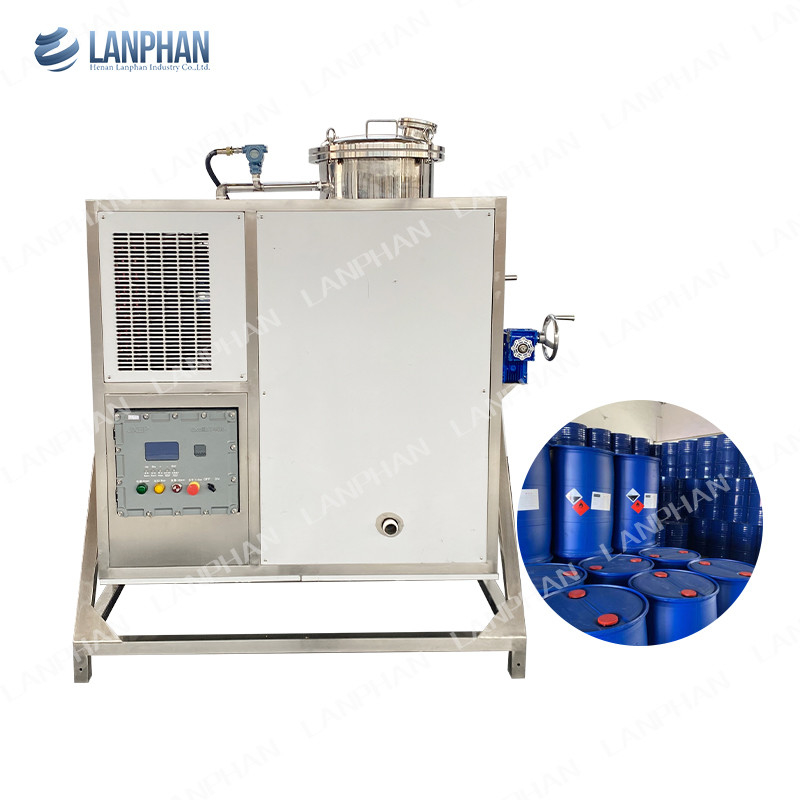

The solvent recovery machine is a special equipment for regenerating and recovering waste organic solvents. It can recover discarded or colored waste solvents (such as diluents, EA, CH2Cl2, xylene and most of the organic solvents used for cleaning) into clean solvents, and then put them into production or experiments to realize multiple utilization of solvents.
