Place of Origin:
China，Henan
Brand Name:
Lanphan
Certification:
contact us
Model Number:
LPEC-50

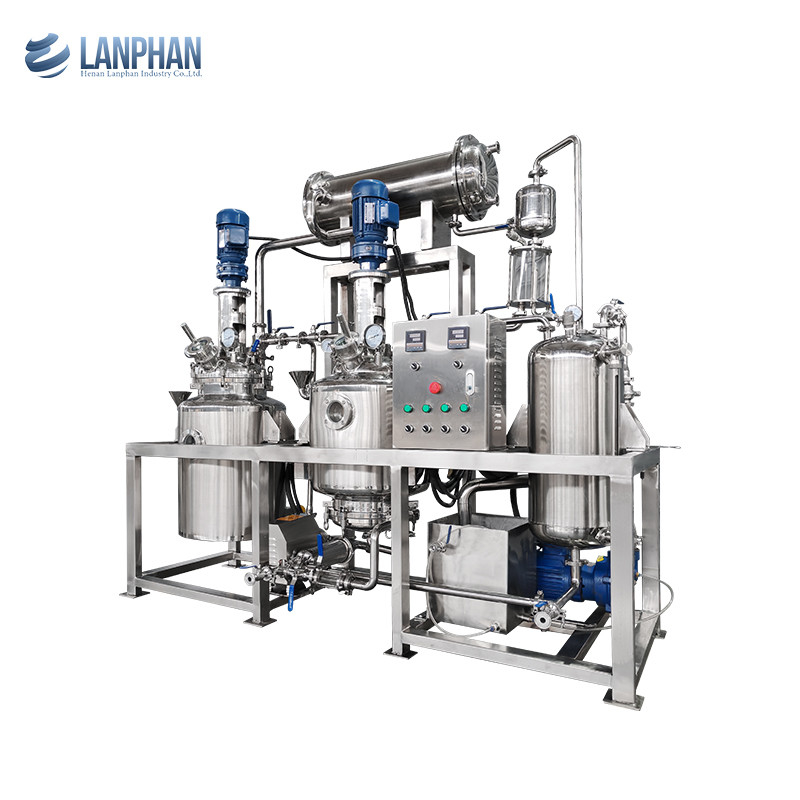

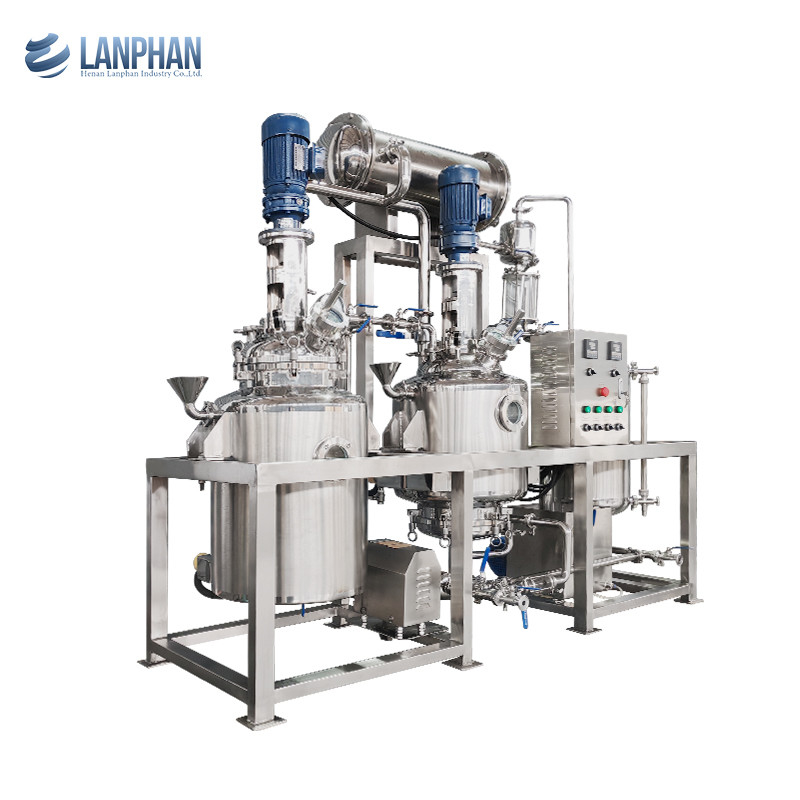

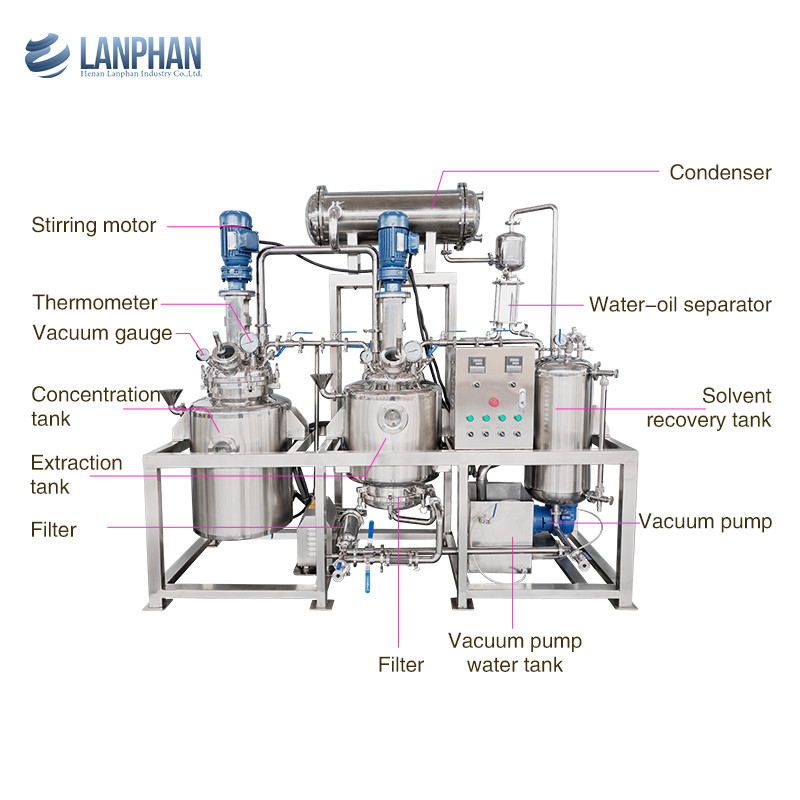

This equipment is an electric heating extraction unit with functions such as heat reflux, water extraction, aromatic oil, normal pressure extraction, vacuum concentration normal pressure extraction, and cream collection.
| Model | EC-50 | |
| Extraction Tank/ Concentration Tank |
Volume (L) | 50L |
| Heating Temperature | Rt-150℃ | |
| Heating Power | 6KW/12KW | |
| Stirring Speed | 23rpm | |
| Motor Power(KW) | 1.5KW | |
| Filter Fineness | 73um | |
| Filter | Filter Fineness | 25um |
| Whole Machine | Vacuum Degree | -0.09Mpa |
| Material | SS304 | |
| Health Level | GMP | |
| Total power | 27KW | |
| Supply Voltage | 380V/50Hz-3P | |
| Package Dimension | 2360*960*2235mm | |
| Package Weight | 688kg | |
The extraction tank demonstrates exceptional efficiency, significantly enhancing the extraction process while minimizing operational time. Its innovative design ensures optimal material flow and heat distribution, leading to consistent and high-quality outputs. Additionally, the user-friendly interface allows for seamless operation, making it accessible for both experienced technicians and newcomers. Overall, this extraction tank stands out as a reliable and effective solution for various extraction needs.
