Place of Origin:
China，Henan
Brand Name:
Lanphan
Certification:
contact us
Model Number:
EDD-200
Video
Video
| Model | Overall dimensions (including fan) |
Capacity (KG) | Drum diameter (mm) | Drum size (mm) | Speed (rpm) | Power (KW) | Heating power (KW) |
| EDD-200 | 2800*1100*1450mm | 200 | 800 | 800*1800*3 | 6-12 | 1.5 | 30 |
| EDD-300 | 3600*1100*1450mm | 300 | 800 | 800*2600*3 | 6-12 | 2.2 | 30-40 |
| EDD-500 | 4000*1300*1600mm | 500 | 1000 | 1000*2800*3 | 5-9 | 3 | 40-50 |
| EDD-1000 | 4600*1500*1700mm | 1000 | 1200 | 1200*3400*4 | 4-7 | 4 | 60-80 |
| EDD-2000 | 5800*1800*2000mm | 2000 | 1500 | 1500*4400*5 | 3-5 | 7.5 | 80-100 |
| EDD-3000 | 7600*1800*2000mm | 3000 | 1500 | 1500*6000*5 | 3-5 | 11 | 120-150 |
| EDD-5000 | 9000*2300*2400mm | 5000 | 1800 | 1800*6600*8 | 3-5 | 15 | 180-200 |

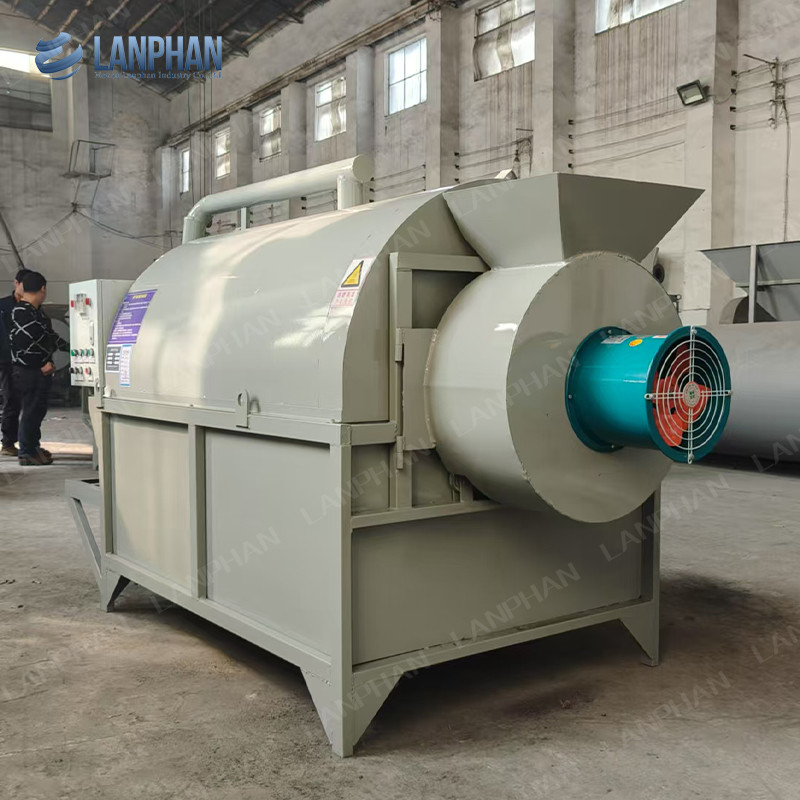

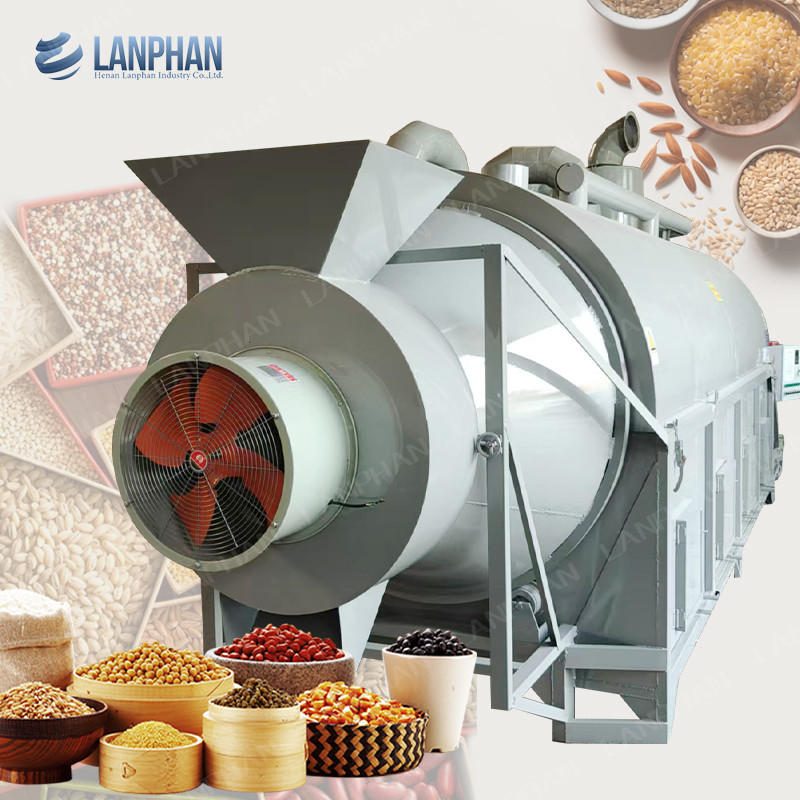

The drum dryer consists of two parts: the box and the drum. The main body adopts a countercurrent tower internal circulation structure, an overall modular structure, convenient disassembly and transportation, small footprint, good drying quality, low labor operation intensity, and standard equipment cost. The heating system and the drum are integrated and docked, with a compact structure, low energy consumption, and high thermal efficiency. It is generally suitable for powdery and granular materials.
Advantages :
1. A variety of materials, a key drying, a machine multi-purpose
2. Three-dimensional drying liner, stewing and frying effect, automatic frying and drying, reversing the discharge.
3. Large capacity, simple operation
4. Fire size free control, a key to start automatic discharge
5. Even drying, good effect
