Place of Origin:
Henan, China
Brand Name:
Lanphan
Certification:
CE ISO

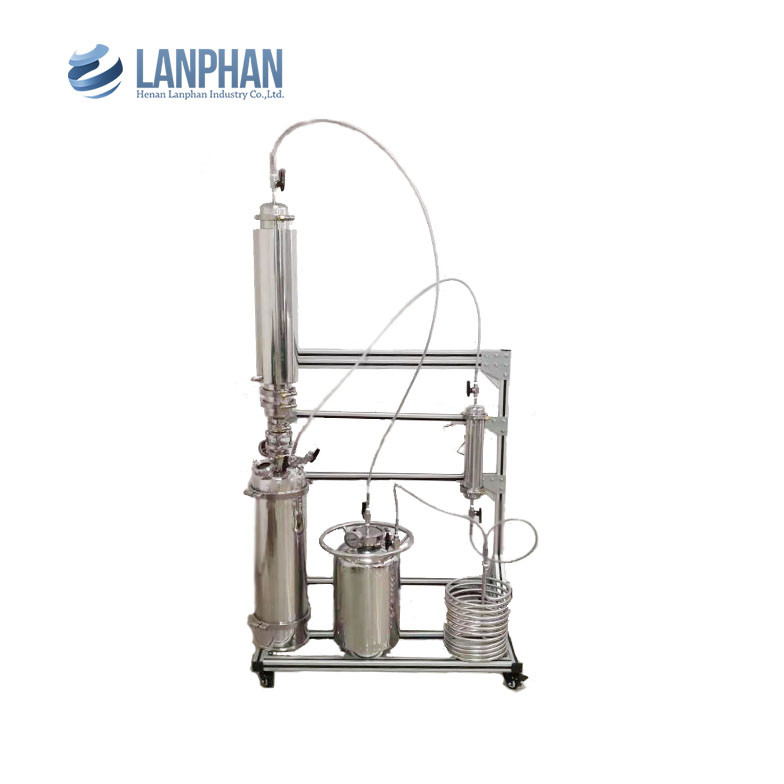

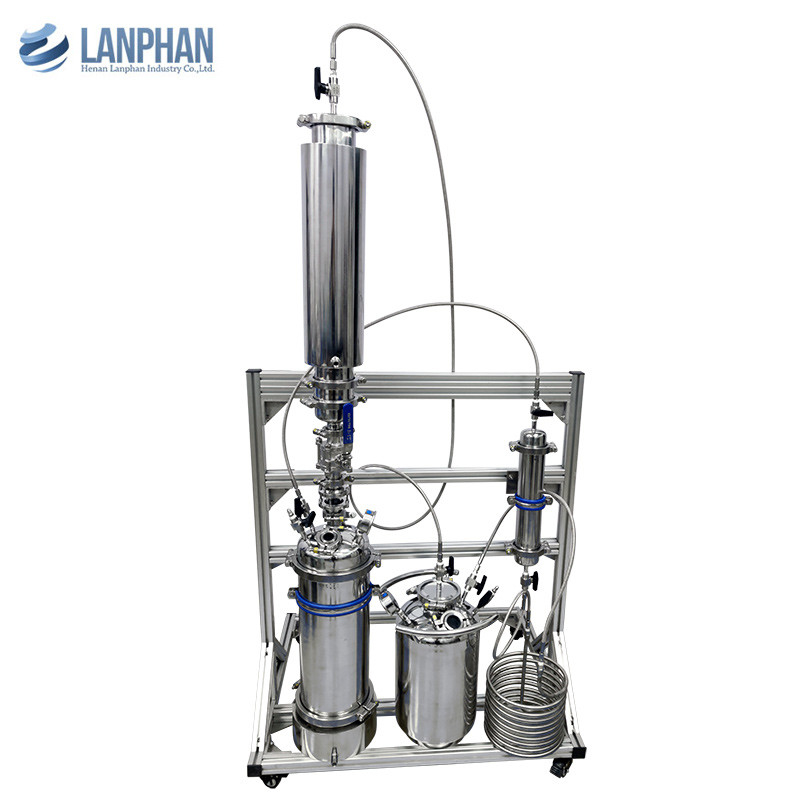

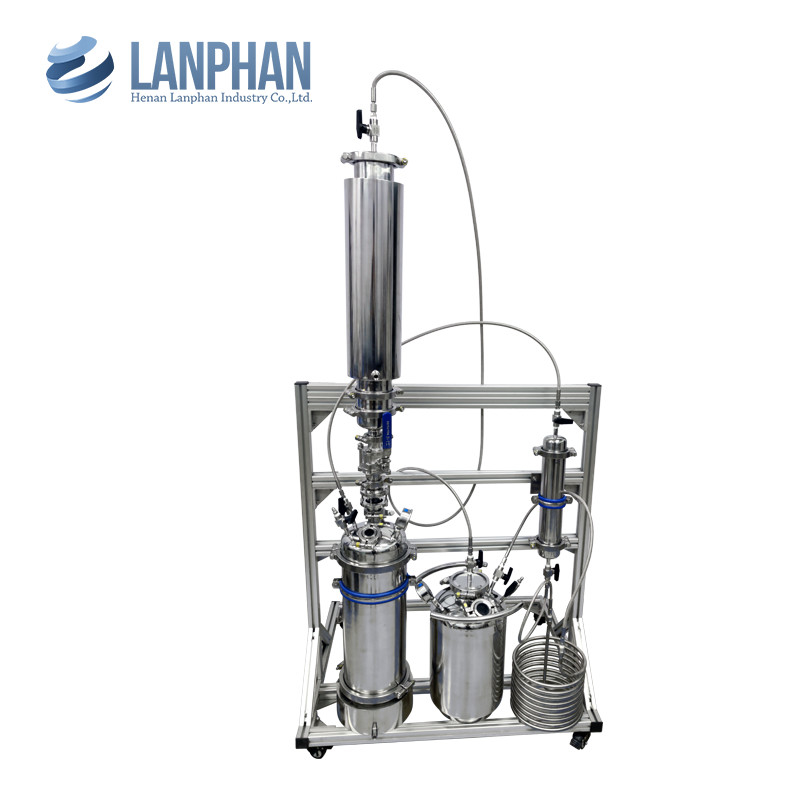

Parameter of Closed Loop Extractor
| polish | mirror polish |
| seal | Flange,mesh gasket |
| Capacity | 1LB |
| Stainless construction | SS304 |
| Product Name | Closed Loop Extractor |
Description of Closed Loop Extractors
It’s well-known that closed loop extractors are widely used for the extraction and concentration of substances in chemical, biochemical, industrial fields and other fields. In the whole closed loop extraction equipment, people use ethanol as the washing solvent to extract substances from the sample materials. In this way, closed loop extractors could achieve a high extracting efficiency and keep the extracted substances pure. The working process of a closed loop extractor can be concluded as follows. The materials are put into the material column to get soaked by ethanol or other solvents. In this process, substances get extracted. Then the mixture will be transferred into next column and get separated. The solvents will be transferred into next column and extracted substances will be saved in the bottom container for users to get. In closed loop extractor, the solvents can be recycled and used for several times.
Classifications of Closed Loop Extractors
There are several types of closed loop extractors. In terms of ways of solvent injection, closed loop extractors can be classified into the top filled closed loop extractors and the bi-directional closed loop extractors. In terms of ways of solvent movement, closed loop extractors can be classified into the passive closed loop extractors and the active closed loop extractors.
Advantages of Closed Loop Extractors
Firstly, it is safer because of the closed-loop extraction setup. Secondly, it’s energy-saving due to the materials can be reused. Thirdly, it possesses a higher efficiency and better quality, which can separate various substances very quickly and produce the pure extracted solvents.

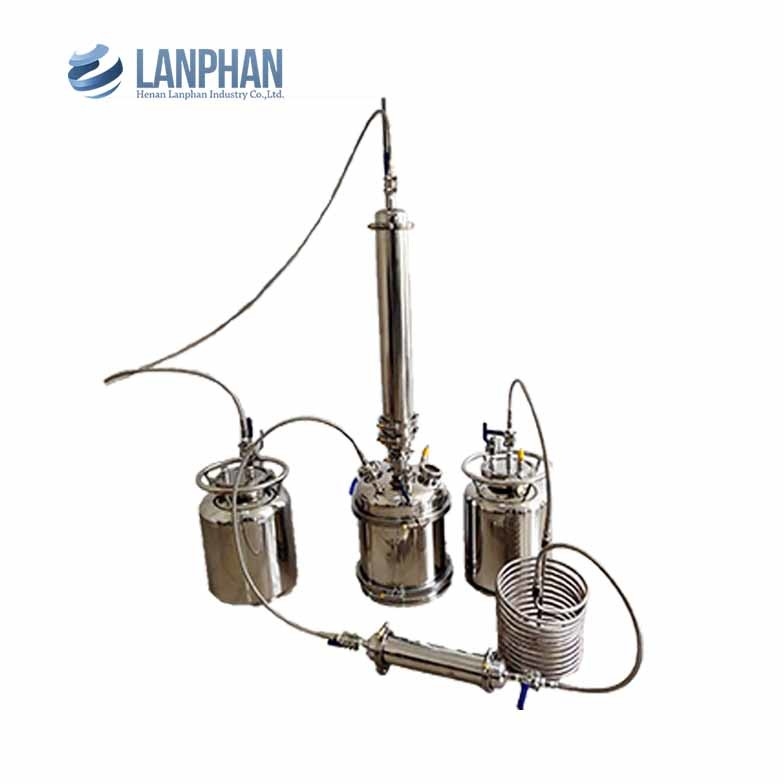

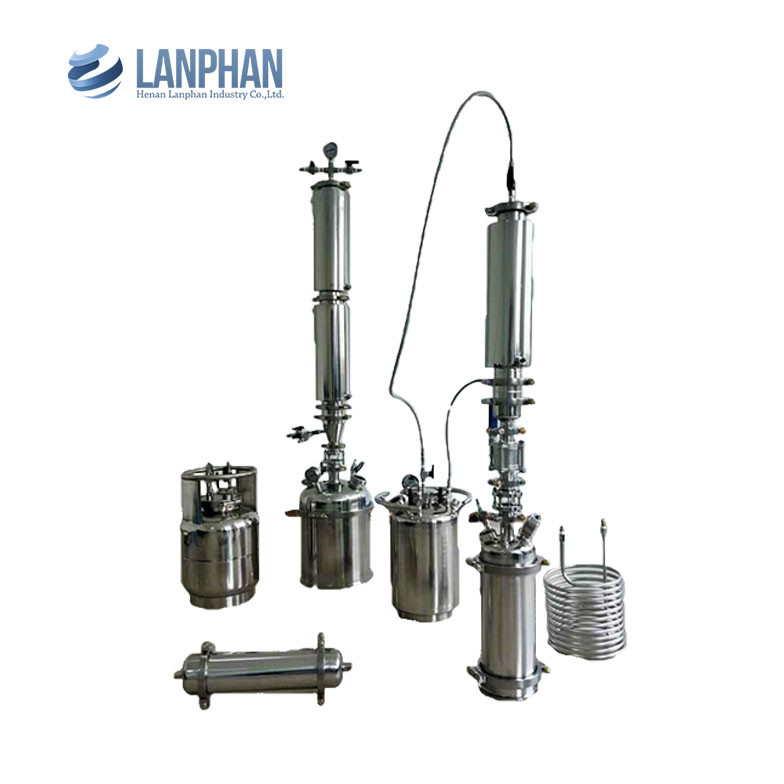

The accessories of closed loop system
01. High pressure food grade hoses: the tube used to transfer liquid phase butane
02. Solvent tank: the container used to contain solvents
03. Product tubes: the tube used to transfer production
04. Collection chamber: the container used to collect oil
05. Recovery pump:used to provide pressure to recover the solvents
06. Material column: the reactor that cannabis gets extracted
