Place of Origin:
Henan, China
Brand Name:
Lanphan
Certification:
CE ISO
Model Number:
L-5LB

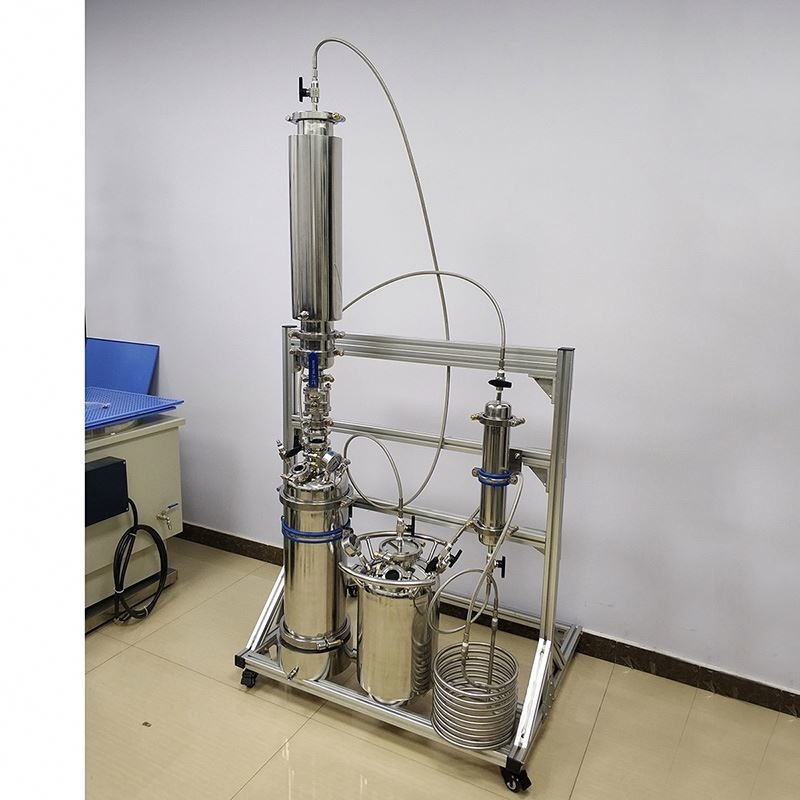

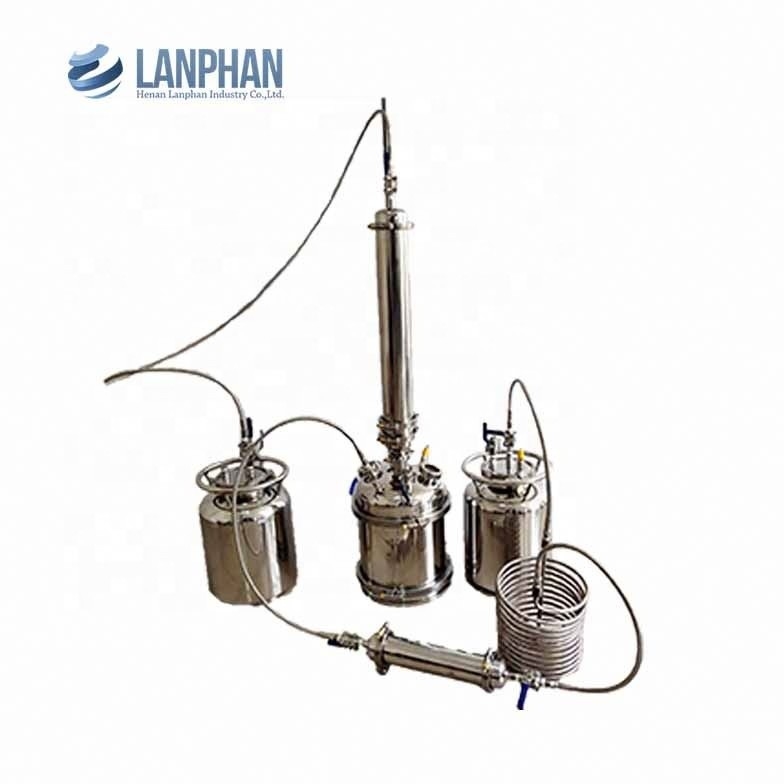

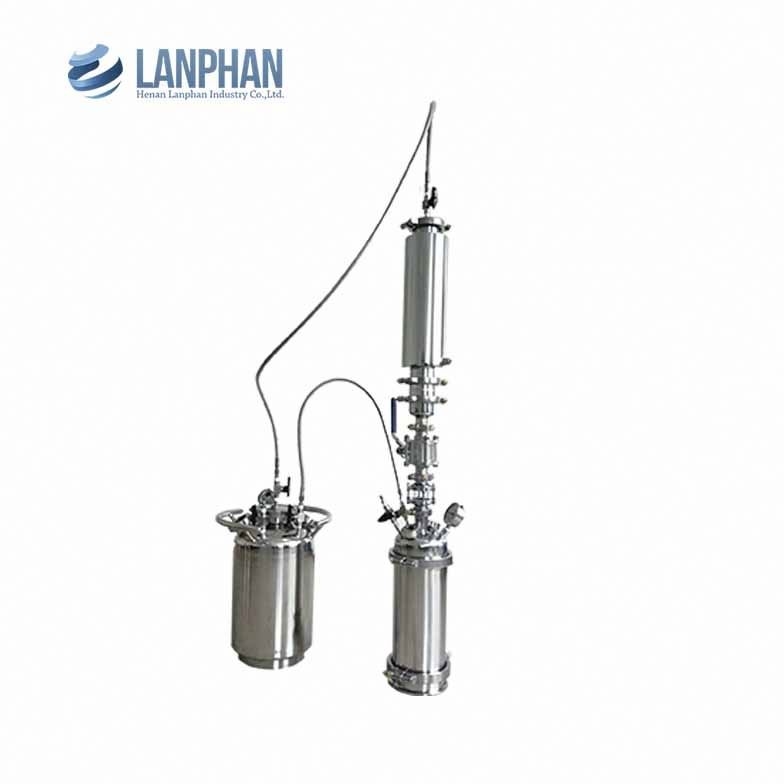

Bho Closed Loop Extraction Machine
Classifications of Closed Loop Extractors
There are several types of closed loop extractors. In terms of ways of solvent injection, closed loop extractors can be classified into the top filled closed loop extractors and the bi-directional closed loop extractors. In terms of ways of solvent movement, closed loop extractors can be classified into the passive closed loop extractors and the active closed loop extractors.
Product Parameter Of Closed Loop Extractors
| Material | SS304 or SS316 |
| Capacity | 1LB, 2LB, 5LB |
| Material Column | 3”*24” 3”*36” 4”*48” |
| Gasket Type | Fluororubber |
| System Pressure Rating | 150psi |
| Range of Working Temperature | -42℃~72℃ |
| System Ultrahigh Vacuum | 10μm Hg |
The Accessories of Closed Loop Extractors
01. High pressure food grade hoses: the tube used to transfer liquid phase butane

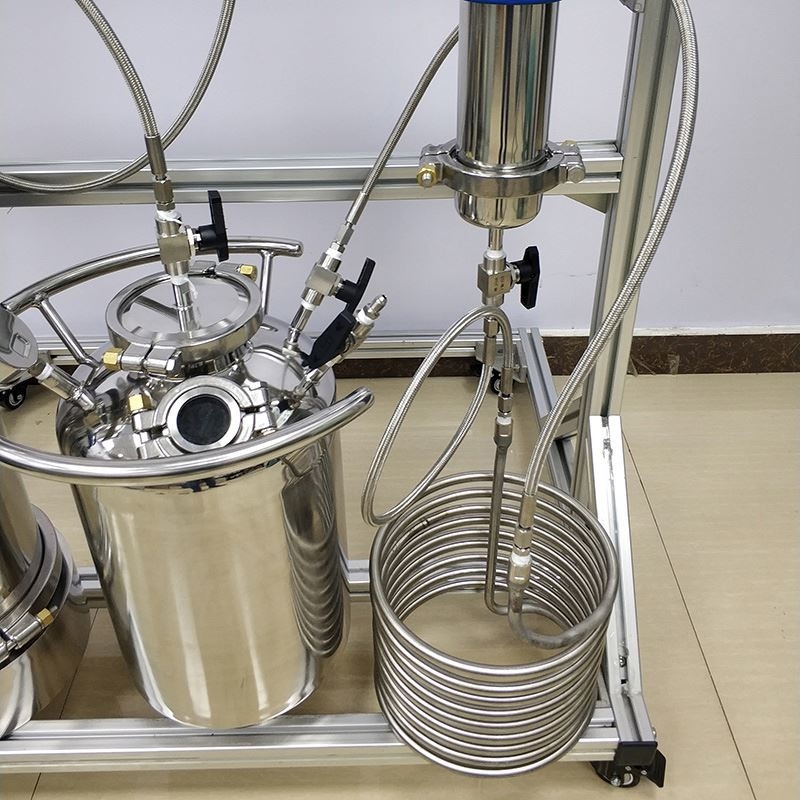

02. Solvent tank: the container used to contain solvents
03. Product tubes: the tube used to transfer production

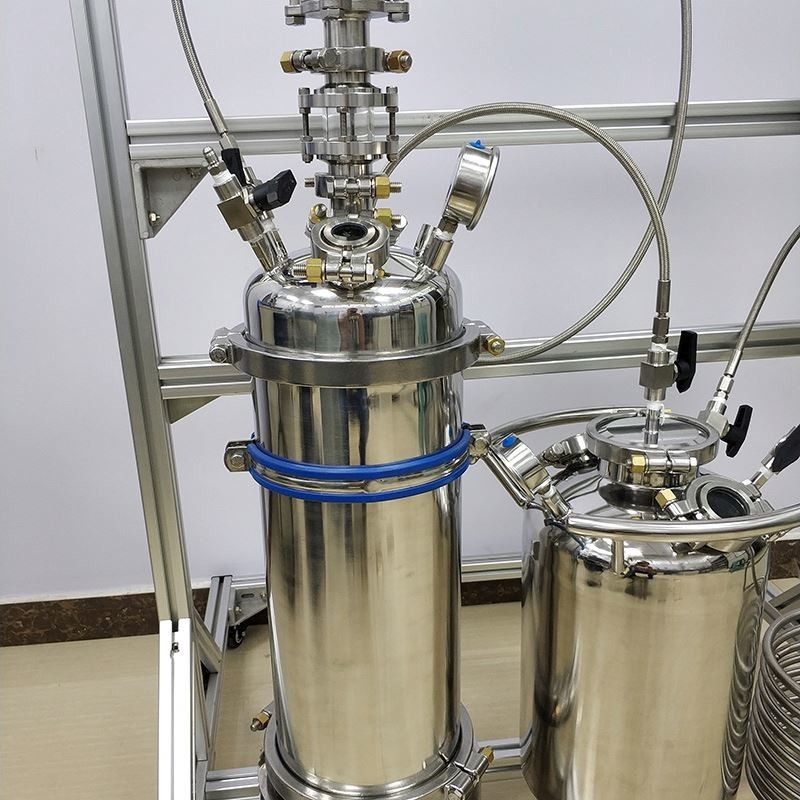

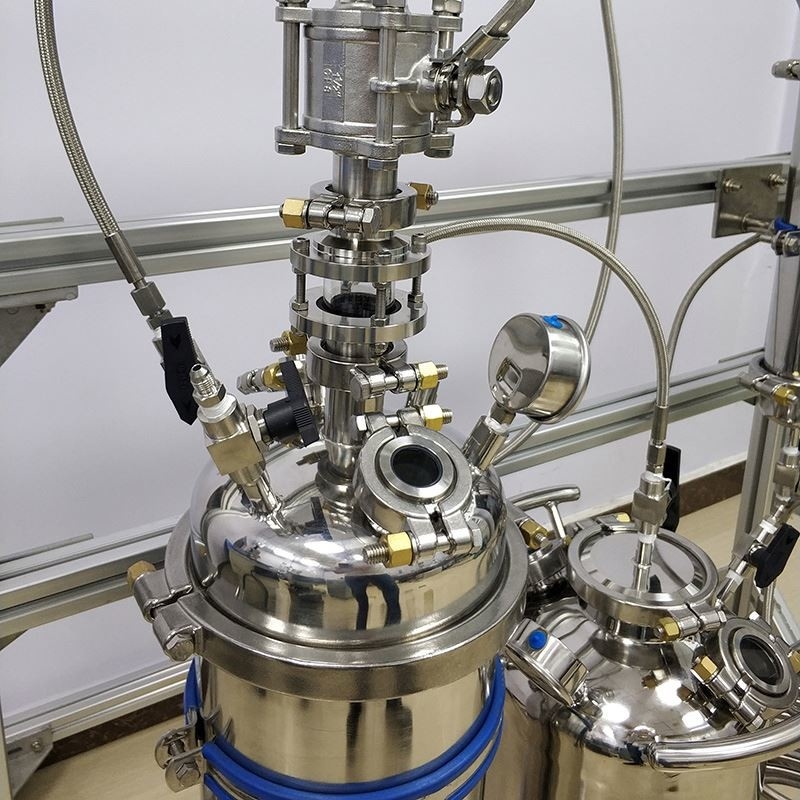

04. Collection chamber: the container used to collect oil
05. Recovery pump:used to provide pressure to recover the solvents
06. Material column: the reactor that cannabis gets extracted
Product Advantages of Closed Loop Extractors
01. High production.
02. More than 99% of the solvent can be recovered.
03. Independent port for vacuum, injection and recovery.
04. Remove the pollution in the solvent and oil.
05. No gas exposed to air.
06. Environmental protection.
07. Modular design for easy upgrade.
Generally speaking, a closed loop extractor equipment is mainly composed of three parts, inculding a solvent tank, a material column and a receiving foundation. Some upgraded versions add a dewaxing column as the fourth part, or equip the material column with a dewaxing structure directly.
It is well recognized that a closed loop extractor is a device for extracting a solvent from a solid matter. It is widely used in industrial cannabinoid extraction. During the entire operation of the closed loop extractor, the various parts of the plant are coordinated for solvent extraction.
Working Principle of Closed Loop Extractors
The working process of a closed loop extractor can be simply described as follows. The materials are put into the material column to get soaked by ethanol or other solvents. In this process, substances get extracted.
Then the mixture will be transferred into next column and get separated. The solvents will be transferred into next column and the extract will be saved in the bottom container for users to get. In a closed loop extractor, the solvents can be recycled and used for several times, which is very economical for users and very environmentally friendly for people.
