Place of Origin:
Henan, China
Brand Name:
Lanphan
Model Number:
L-5LB

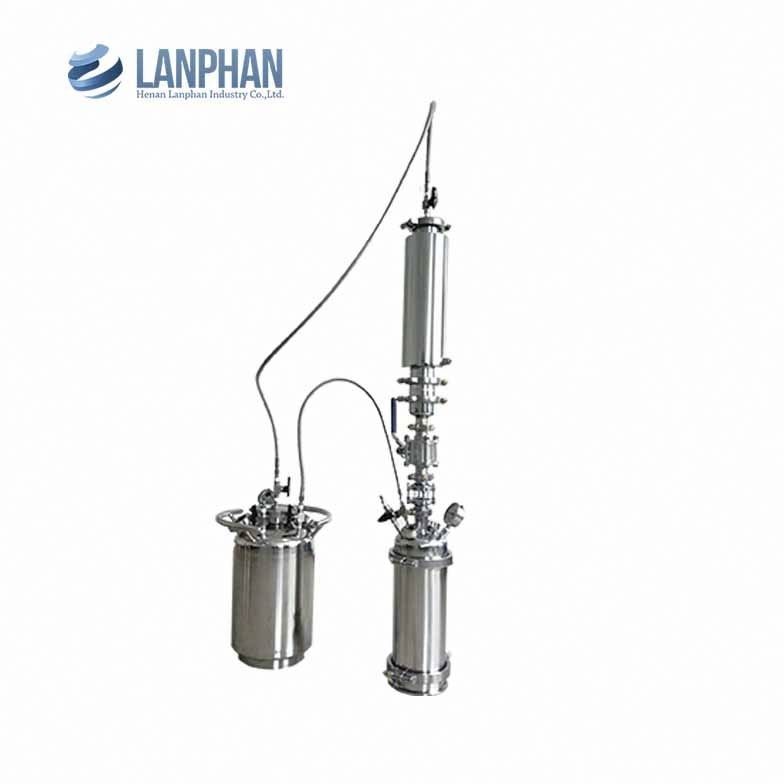

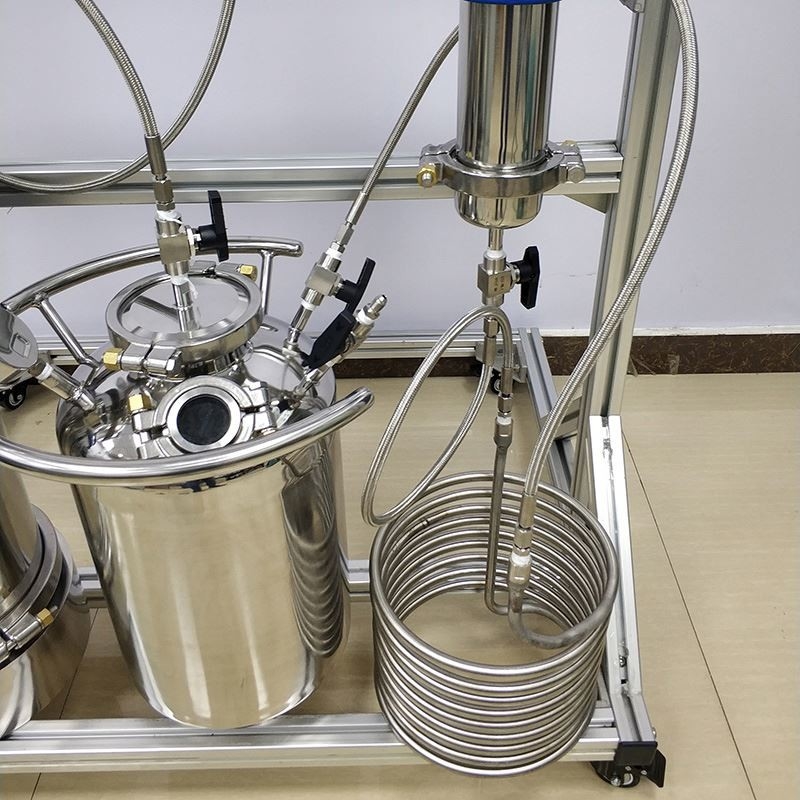

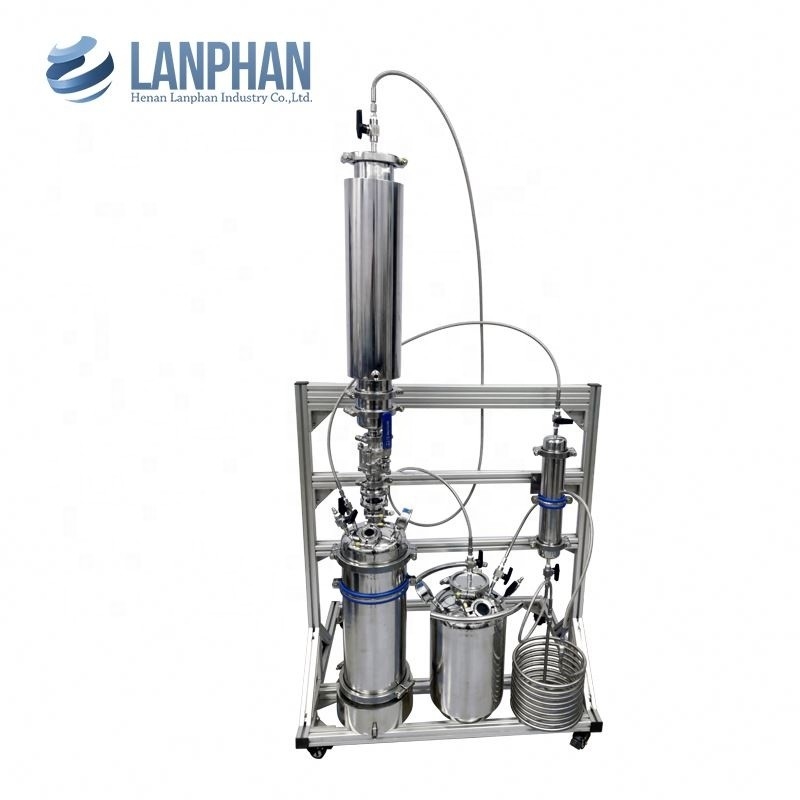

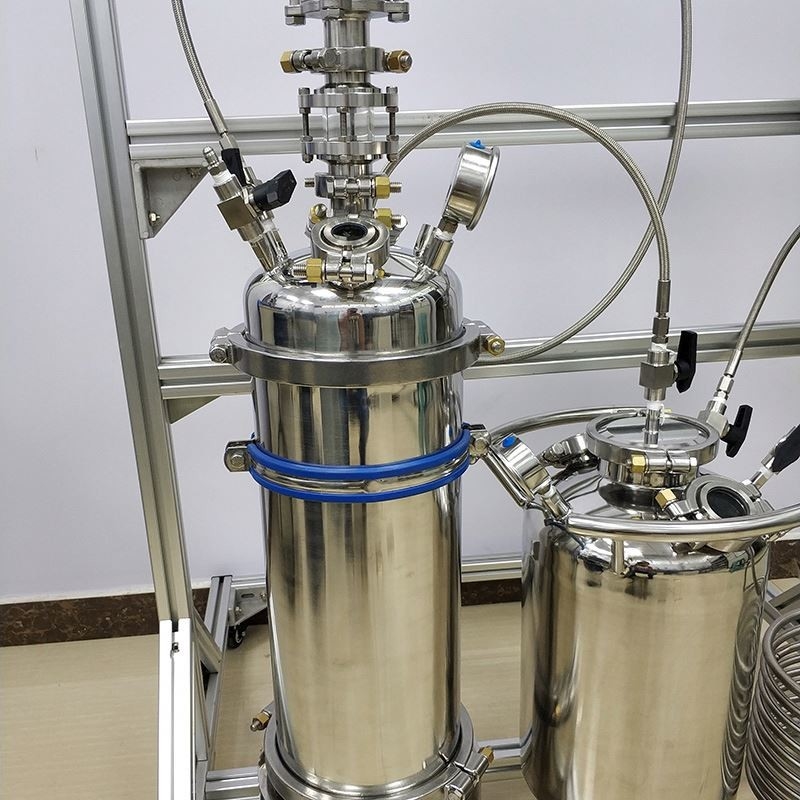

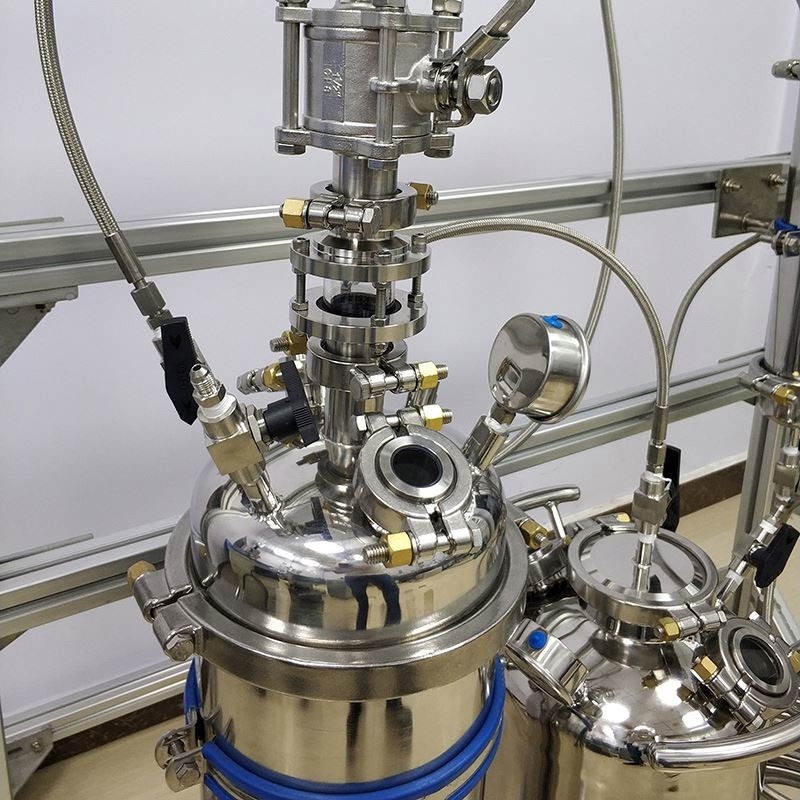

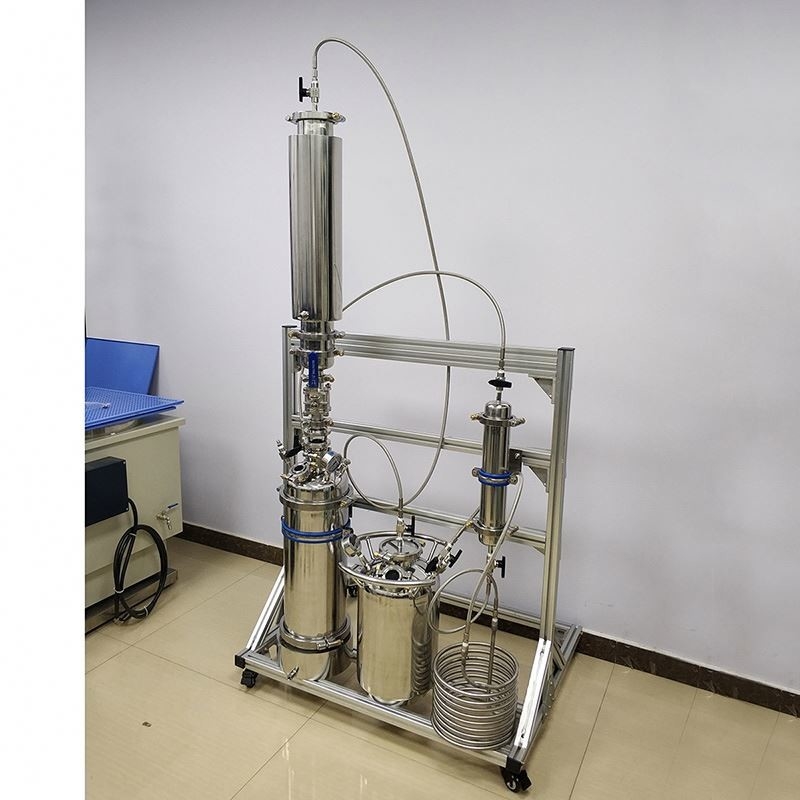

Best price bho closed loop extractor system
Known as an essential extraction equipment, a closed loop extractor is usually used to extract cannabis concentrates. As its name suggests, there is no solvent being exposed to the open air in its closed loop extarction system.
In recent years, a closed loop extractor has been more and more popular in the chemical, biochemical, industrial, pharmaceutical and other fields, and it's especially applicable for the process of food, perfume and other beauty products. And nowadays, the use of closed loop extraction system is well-received in the concentration of Cannabis.
The closed loop extractor is very economic and energy-saving. In the closed loop extraction system, materials can be reused again and again, which means more energy are saved and can avoid wasting. What's more, the closed loop extraction system is much safer and possesses an extremely high efficiency.
Classifications of Closed Loop Extractors:
There are several types of closed loop extractors. In terms of ways of solvent injection, closed loop extractors can be classified into the top filled closed loop extractors and the bi-directional closed loop extractors. In terms of ways of solvent movement, closed loop extractors can be classified into the passive closed loop extractors and the active closed loop extractors.
Working Process of Closed Loop Extractors:
The working process of a closed loop extractor can be described as follows. The materials are put into the material column to get soaked by ethanol or other solvents. In this process, substances get extracted. Then the mixture will be transferred into next column and get separated. The solvents will be transferred into next column and the extract will be saved in the bottom container for users to get. In a closed loop extractor, the solvents can be recycled and used for several times, which is very economical for users and very environmentally friendly for people.
The accessories of closed loop extractors:
01. High pressure food grade hoses: the tube used to transfer liquid phase butane
02. Solvent tank: the container used to contain solvents
03. Product tubes: the tube used to transfer production
04. Collection chamber: the container used to collect oil
05. Recovery pump:used to provide pressure to recover the solvents
06. Material column: the reactor that cannabis gets extracted
| polish | mirror polish |
| seal | Flange,mesh gasket |
| Capacity | 1LB |
| Stainless construction | SS304 |
