Place of Origin:
Henan
Brand Name:
Lanphan
Certification:
CE ISO
Model Number:
ZLGJ-10
| Product Modle | ZLGJ-10 (normal type) |
ZLGJ-10 (Multi-manifold type) |
ZLGJ-10 (Gland type) |
ZLGJ-10 (Manifold gland type) |
| Freeze-dried Area | 0.1 | 0.1 | 0.08 | 0.08 |
| Cold Trap Coil Temperature | ≤-55℃(no load),≤-80℃(no load) | |||
| Ultimate Vacuum | ≤5Pa(no load) | |||
| Pumping Rate | 2L/S | |||
| Water Capture Capacity | 3-4kg/24h | |||
| Cooling Method | air cooling | |||

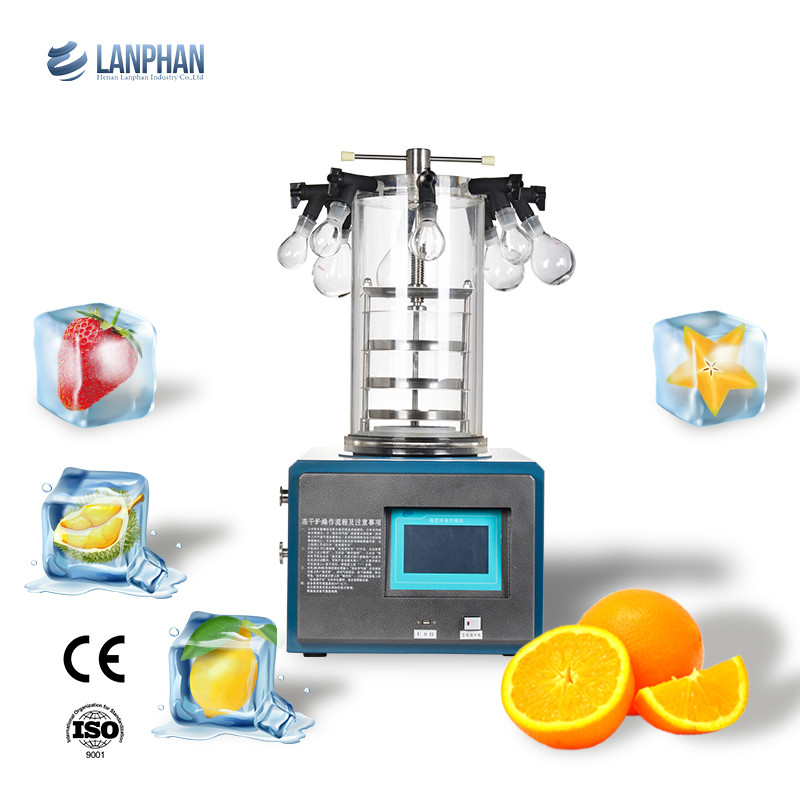

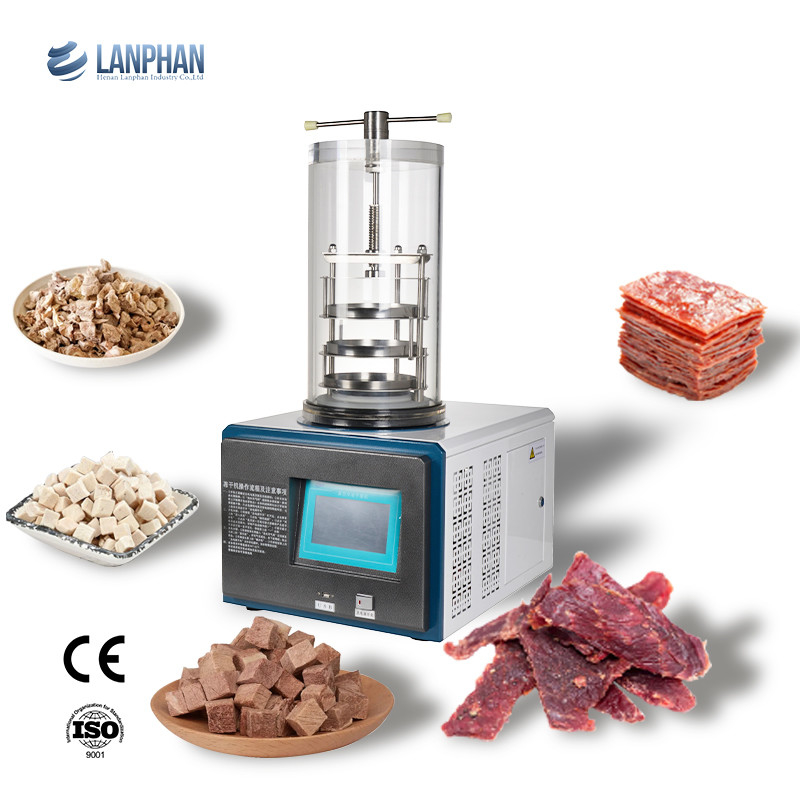

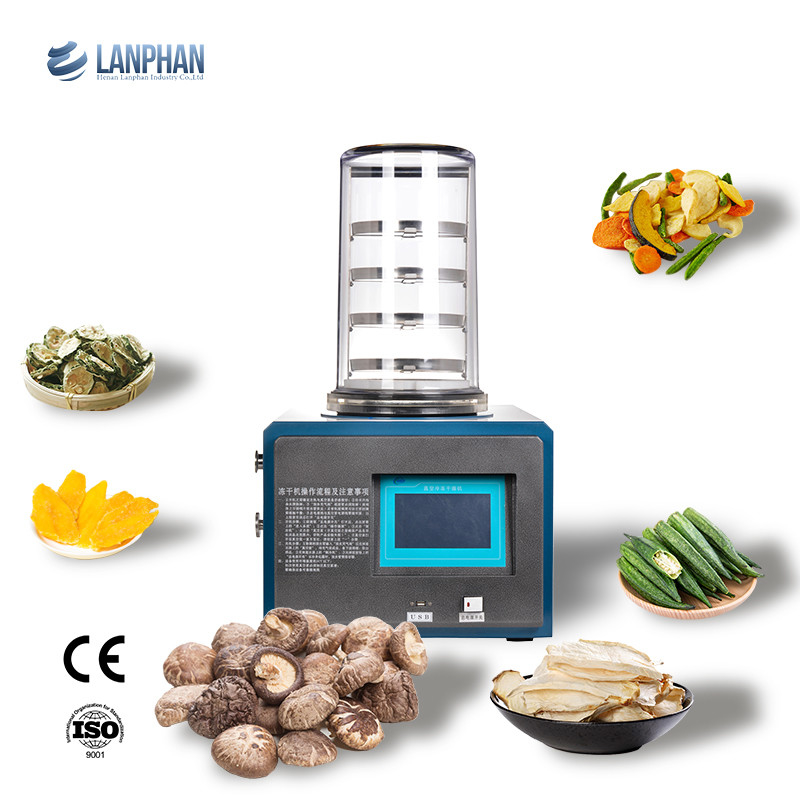

This freeze dryer is a compact benchtop unit with a condenser capacity of 3 kg and a condenser temperature of -50 °C for drying aqueous samples. It allows drying of larger glassware such as flasks independently of the shelving unit. Flasks can be added and removed independently without disturbing the activity of surrounding flasks. A built-in oil mist filtration system and oil return to the vacuum pump help maintain vacuum pressure and prevent oil leaks.
