Place of Origin:
Henan
Brand Name:
Lanphan
Certification:
CE ISO
Model Number:
ZLGJ-18

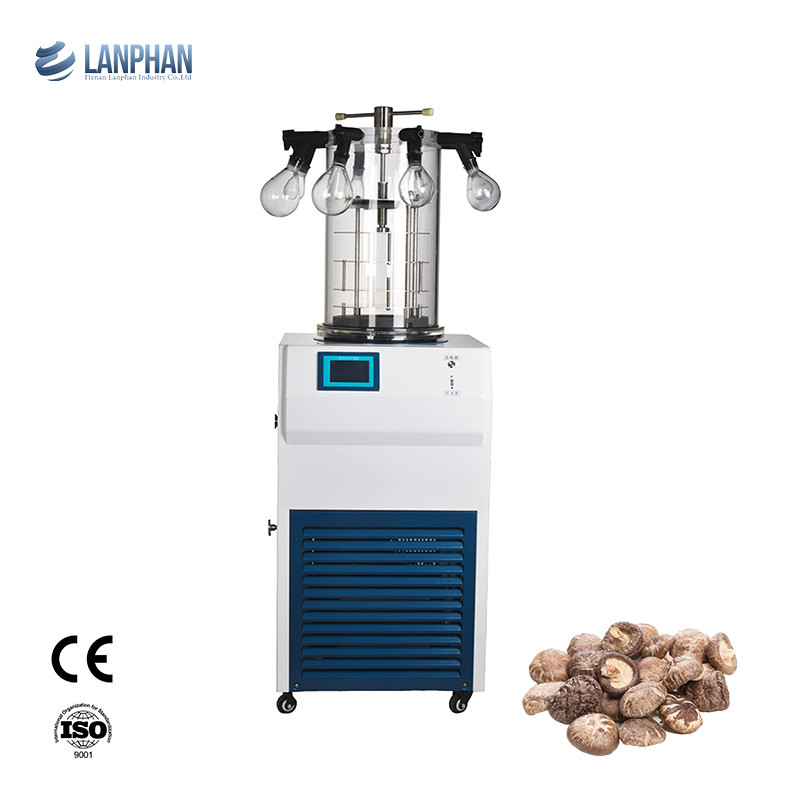

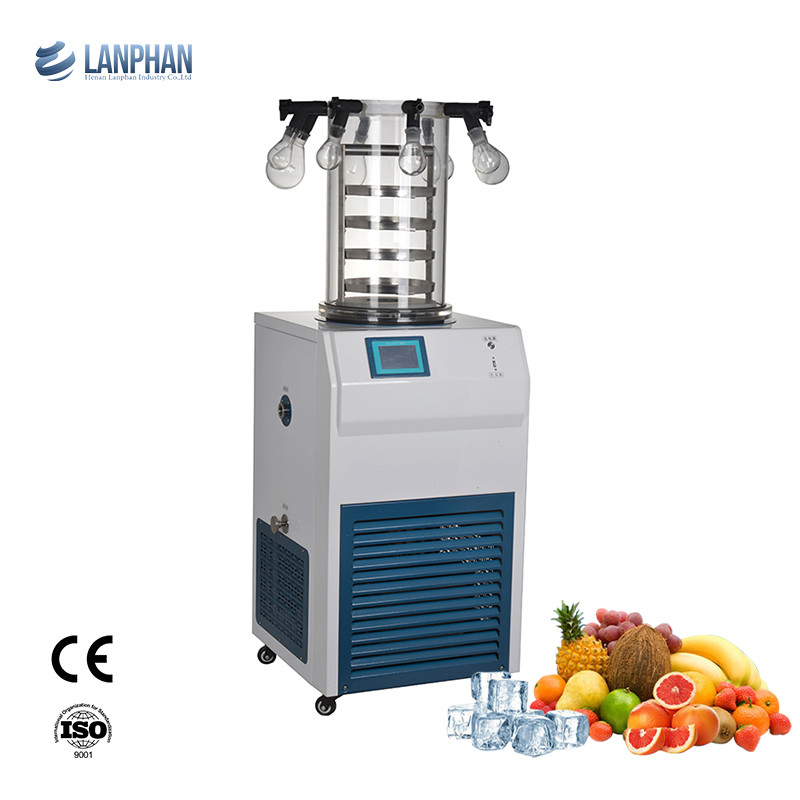

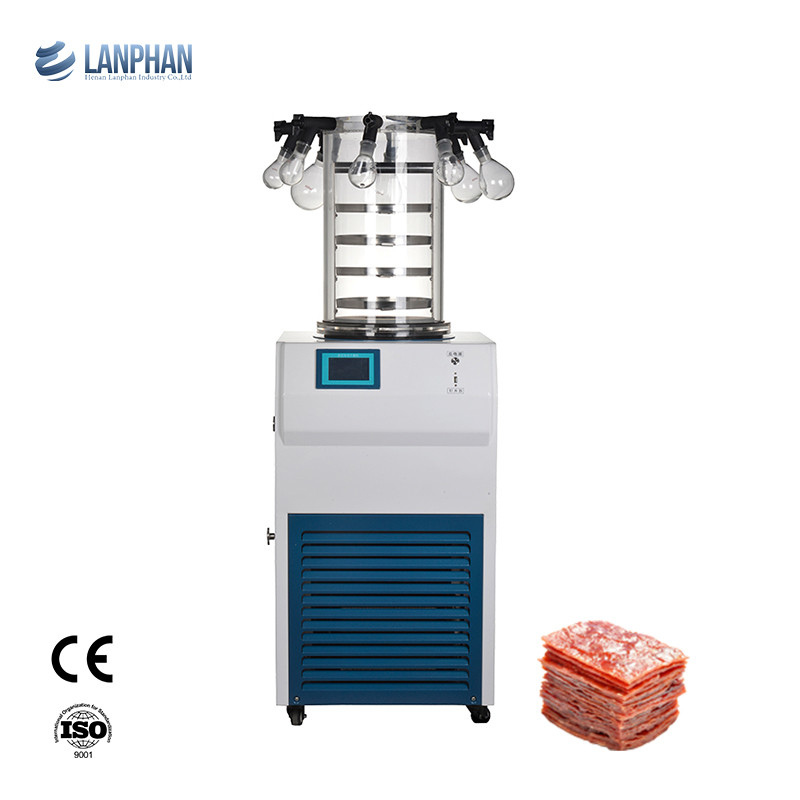

Experimental vacuum freeze dryer is widely used in medicine, pharmaceutical, biological research, chemical industry and food and other fields. Freeze-dried items are easy to preserve for a long time, and can be restored to the state before freeze-dried and retain the original biochemical characteristics after adding water. It is suitable for laboratory use and can meet the requirements of routine lyophilization in most laboratories.
| Product Modle | ZLGJ-18 (normal type) | ZLGJ-18 (Multi-manifold type) | ZLGJ-18 (Gland type) | ZLGJ-18 (Manifold gland type) |
| Freeze-dried Area | 0.18㎡ | 0.18㎡ | 0.09㎡ | 0.09㎡ |
| Cold Trap Coil Temperature | ≤-60ºC(no load)/ ≤-80ºC(no load) | |||
| Ultimate Vacuum | ≤5Pa(no load) | |||
| Pumping Rate | 4L/S | |||
| Water Capture Capacity | 6kg/24h | |||
| Cooling Method | air cooling | |||
| Defrost Mode | Natural Frost | |||
| Host Weight | 88kg | |||
| Host Dimension | 560*560*980(mm) | |||
| Voltage | single phase220V±10% 50HZ | |||
| Total Power | 1100W | |||
| Material Tray | 4pcs/6pcs,Disc diameter: φ240mm, disc spacing: 70mm | 3pcs,Disc diameter: φ200mm, gap between glands: 70mm | ||
| Eggplant Flask | / | 8pcs,100ml,150ml,250ml,500ml two each | / | 8pcs,100ml,150ml,250ml,500ml two each |
| vials | vials φ12:1320; vials φ16:740; vials φ22:540; | vials φ12:990; vials φ16:555; vials φ22:360; | ||
| Voltage | single phase220V±10% 50HZ | |||
1, integrated structure design, small size, easy to use, no leakage.
2. All materials in contact with the product are made of inert materials to meet the requirements of GLP.
3. The cold trap and drying rack are made of stainless steel, corrosion-proof and easy to clean.
4, cold trap opening, no inner coil, with sample pre-freezing function, no need for low temperature refrigerator.
5, specialized gas diversion technology, cold trap ice uniform, ice capture ability is strong.
6, international famous brand compressor, high efficiency and energy saving, long service life, low noise.
