Place of Origin:
Henan
Brand Name:
Lanphan
Certification:
CE ISO
Model Number:
ZLGJ-18

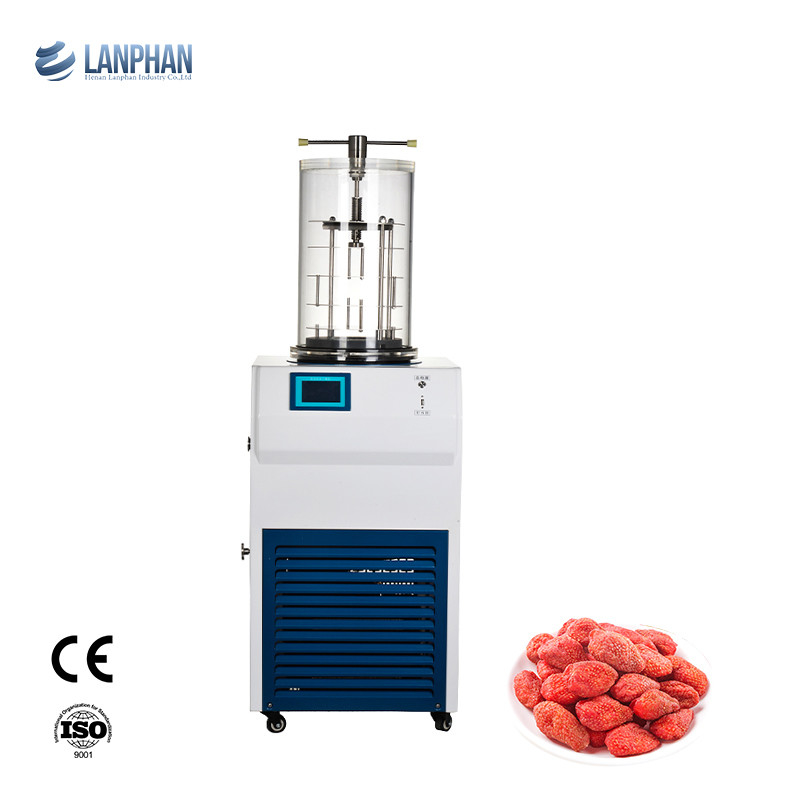

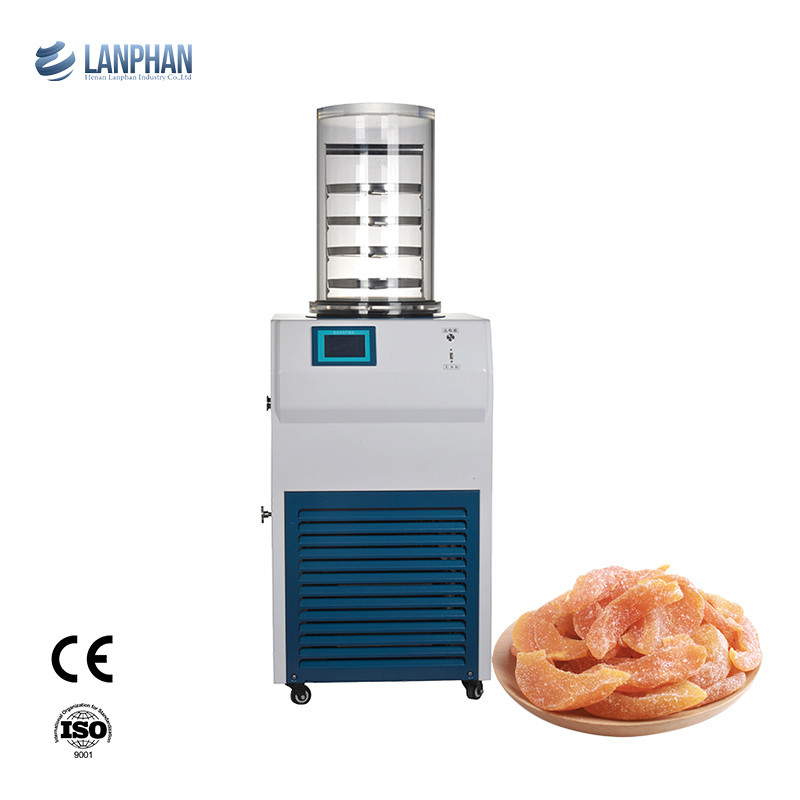

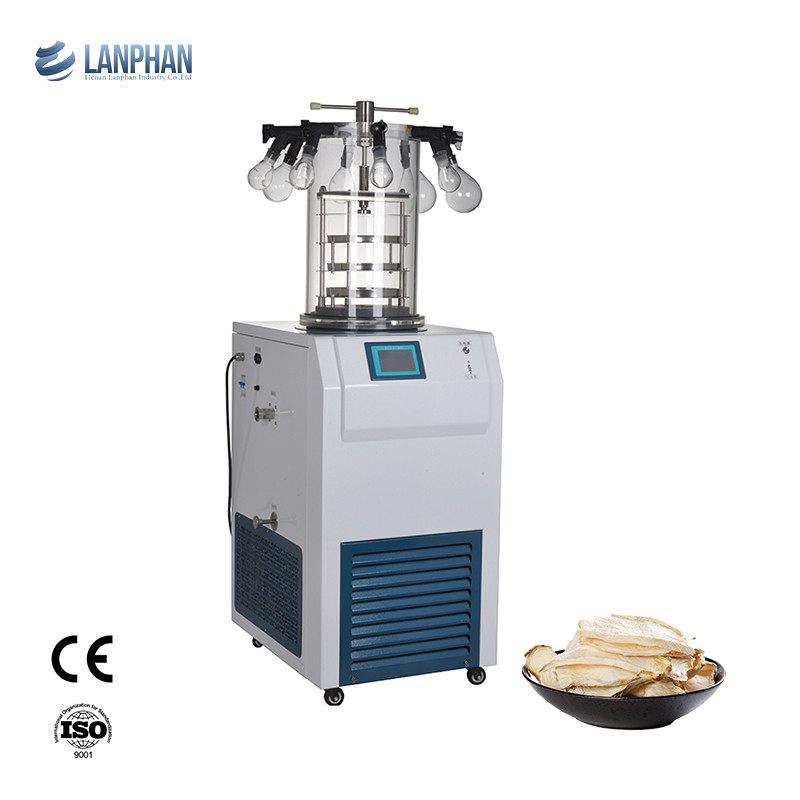

Experimental vacuum freeze dryer is widely used in medicine, pharmaceutical, biological research, chemical industry and food and other fields. Freeze-dried items are easy to preserve for a long time, and can be restored to the state before freeze-dried and retain the original biochemical characteristics after adding water. It is suitable for laboratory use and can meet the requirements of routine lyophilization in most laboratories.
| Product Modle | ZLGJ-18 (normal type) | ZLGJ-18 (Multi-manifold type) | ZLGJ-18 (Gland type) | ZLGJ-18 (Manifold gland type) |
| Freeze-dried Area | 0.18㎡ | 0.18㎡ | 0.09㎡ | 0.09㎡ |
| Cold Trap Coil Temperature | ≤-60ºC(no load)/ ≤-80ºC(no load) | |||
| Ultimate Vacuum | ≤5Pa(no load) | |||
| Pumping Rate | 4L/S | |||
| Water Capture Capacity | 6kg/24h | |||
| Cooling Method | air cooling | |||
| Defrost Mode | Natural Frost | |||
| Host Weight | 88kg | |||
| Host Dimension | 560*560*980(mm) | |||
| Voltage | single phase220V±10% 50HZ | |||
| Total Power | 1100W | |||
| Material Tray | 4pcs/6pcs,Disc diameter: φ240mm, disc spacing: 70mm | 3pcs,Disc diameter: φ200mm, gap between glands: 70mm | ||
| Eggplant Flask | / | 8pcs,100ml,150ml,250ml,500ml two each | / | 8pcs,100ml,150ml,250ml,500ml two each |
| vials | vials φ12:1320; vials φ16:740; vials φ22:540; | vials φ12:990; vials φ16:555; vials φ22:360; | ||
| Voltage | single phase220V±10% 50HZ | |||
